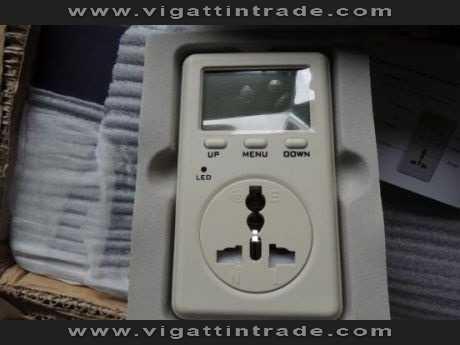

Smart power meter single phase energy meter LCD display multi meter

Functions:

1.Measure real-time voltage of the power supply;

2.Measure real-time operation power of the appliances;

3.Measure power consumption;

4.Calculate the cost of the electricity according to pre-set unit price;

5.Operation condition monitor, the indicator light will flicker when the real-time ratio of operation condition reaches its alarm point;
Ratio of operation condition is the ratio between accumulated operation time per hour (running power is over preset standby power) and 1 hour;

6.Show the operation time of appliances.


Parameters:

Product Name : energy meter, power meter, voltmeter, watt meter, kWh meter
Brand Name : POLINOVEL
Model Number : SPM-A
Plug Version : standard US plug
Voltage Range : 90~150v AC, or 160~280V AC
Frequency : 50 or 60Hz
Power Consumption : 0~999.9kWh
Electric Cost : 0~9999$
Power Range : 0.7~3000W
Operation Condition Ratio: 0~100%
Time Display Range : 0~24h~9999d
Accuracy : 1%
Peak Load : 15A (MAX)
Operating Temperature : -10~60?
Operating Humidity : 10~95% RH
Certificate : CE-EMC, CE-LVD, RoHS, FCC
