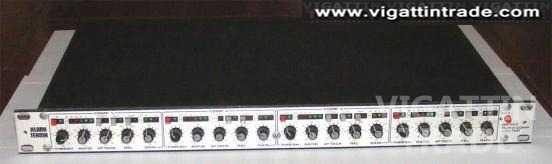

klark teknik quad limiter model:DN 504
INTERNATIONAL PRODUCT 100-220V switchable
4 input/4 output
almost new..almost new
original brand new price in US-$1,825.00(no tax and frieght yet)
give it only---65,000.00(FIXED)

TXT ME 09328729353 SUN click my user's name "jesue1977" to view my other ads


Details

The revised DN500 Plus series utilises a new THAT's' chip which features lower distortion, improved dynamic range and faster slew rate. We've updated the cosmetics too, bringing them into the new KT family look'.

The DN500 Plus is our dual compressor / limiter / expander which is characterised by its extremely quiet operation, typically >2dB quieter than any comparable product. This alone has made it a broadcast-industry standard for many years. The two channels are linkable for true stereo operation, and both the compressor and expander sections are fitted with their own sidechain inputs.

The DN504 Plus Quad Compressor has enjoyed hugely increased popularity in recent years, due to the ever expanding use of in-ear monitor systems. This is because the unit can be configured into two stereo pairs, has all the superlative audio performance of the DN500 Plus, and fits two sets of stereo compression into just one rack space. This configuration also makes it extremely cost effective.

Specs

Inputs Four
Type Electronically balanced (pin 3 hot)
Impedance (ohms)
Balanced 20k
Unbalanced 10k

Side Chain Inputs Four
Type Electronically balanced (tip hot)
Impedance (ohms)
Balanced 20k
Balanced 10k

Audio Outputs Four
Type Unbalanced (pin 3 hot)
Min. Load impedance 600 ohms
Source impedance <60 ohms
Max. level +21dBu

Performance
Frequency response (20Hz-20kHz) +/- 0.5dB
Distortion (@ + 18dBu) <0.03% @ 1kHz
Dynamic Range >115dB
Channel separation >90dB @ 1kHz

Compressor
Threshold -30dB to +20dB
Ratio 1:1 to 50:1
Knee Switchable 1dB (hard) / 40dB (soft)
Envelope Switchable auto (attack and release controls disabled) or manual
Attack (90% capture) 50us to 20ms
Release (90% recovery) 60ms to 2 secs
Output Gain -10dB to +30dB

Terminations
Audio inputs/outputs 3 pin XLR
Side-chain inputs Normalled 1/4 inch stereo jack
Power IEC

Power Requirements
Voltage 110/120/220/240V 50/60Hz
Consumption <30VA

Weight
Nett 4kg
Shipping 6kg

Dimensions
Width 482mm (19 inch)
Depth 292mm (11.5 inch)
Height 44.5mm (1.75 inch)
