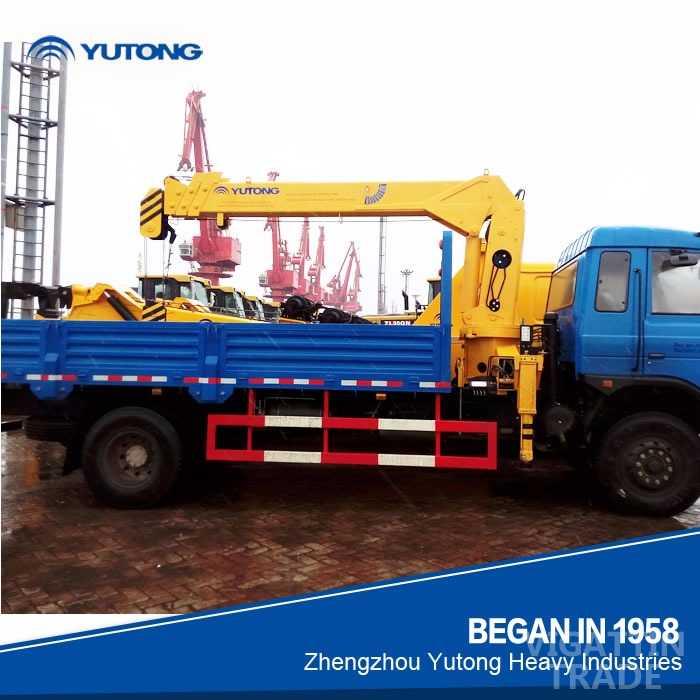

YUTONG Truck-Mounted Crane
The truck with loading crane whose key components are imported original products is a newly developed yutong special purpose vehicle with such advantages as high reliability, strong hoisting and loading ability, reasonable design and easy operation. It can be widely used in the traffic and transport, civil engineering, electric power, petroleum, stone industry and dock for loading and unloading of goods, resye and long-distance freight transfer.
Technical Parameter of EQ5168JSQL Truck-Mounted Crane (6.3t)
|
Declared external dimension (mm) |
9000×2500×3650 |
|
Actual external dimension (mm) |
9100(9400)×2500×3650 |
|
Chassis model |
EQ1168GLJ2 |
|
Dimension of car body |
5700×2300×550 |
|
Total Weight(kg) |
9710 |
|
Rated load (Kg) |
7955 |
|
Maximum vehicle speed (km/h) |
95 |
|
Wheelbase (mm) |
5100 |
|
Front suspension/rear suspension (mm) |
1250\2650 |
|
Approach angle/departure angle(°) |
30/24 |
|
Wheel track of front wheel (mm) |
1900 |
|
Wheel track of rear wheel (mm) |
1800 |
|
Crane Model |
SQ6.3SA3 |
|
Max. rating load(kg) |
6300 |
|
Max. working range (m) |
11.2 |
|
Max. lifting height(m) |
13 |
