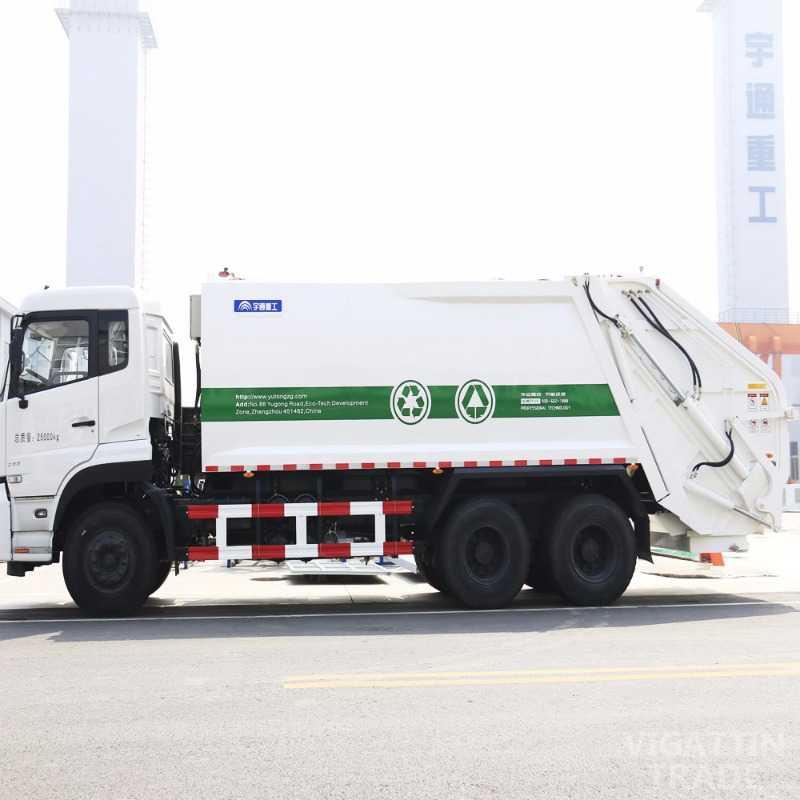

YUTONG Garbage compactor truck
The chassis of garbage compactor truck adopts the domestic well-known Dongfeng forward control Type-B automobile chassis with high market share rate, in compliance with the National ? Emission Standard.
Performance characteristics of Garbage compactor truck
a. Powerful power and high reliability:
b. Superior performance and reliable quality:
c. High tightness, elimination of pollution:
d. Automatic control, easy operation:
- Major technical parameters of YTZ5250ZYS20E/F
|
Product model |
YTZ5250ZYS20E |
YTZ5250ZYS20F |
|
Chassis model |
DFL1250A8 |
DFL1250A11 |
|
Chassis manufacturer |
Dongfeng Automobile Co., Ltd. |
Dongfeng Automobile Co., Ltd. |
|
Overall dimension of complete vehicle (mm) |
9740(9990,10160)X2480X3250 |
9770(9990,10160)X2500X3330 |
|
Wheelbase (mm) |
4350+1300 |
4350+1300 |
|
Wheel track of front wheel (mm) |
1986 |
1986 |
|
Wheel track of middle and rear wheels (mm) |
1860, 1860 |
1860, 1860 |
|
Kerb mass (kg) |
14410,14530,14650 |
14410,14530,14650 |
|
Rated load (Kg) |
10460,10340,10220,10395,10275,10155 |
10460,10340,10220,10395,10275,10155 |
|
Gross mass (kg) |
25000 |
25000 |
|
Maximum vehicle speed (km/h) |
90 |
90 |
|
Maximum gradeability (%) |
20 |
20 |
|
Maximum turning diameter (m) |
22 |
22 |
|
Minimum ground clearance (mm) |
250 |
250 |
|
Approach angle (°) |
20 |
20 |
|
Departure angle (°) |
13 |
11 |
|
Dustbin volume (m3) |
20 |
20 |
|
Volume of precompressor (m3) |
2.0 |
2.0 |
|
Compression cycle time (s) |
30 |
30 |
|
Garbage dumping time (s) |
60 |
60 |
|
Compression density (t/m3) |
0.6-0.8 |
0.6-0.8 |
3. Main configurations of YTZ5250ZYS20E/F
|
Product model |
YTZ5250ZYS20E |
YTZ5250ZYS20F |
|
Chassis model |
DFL1250A8 |
DFL1250A11 |
|
Chassis manufacturer |
Dongfeng Automobile Co., Ltd. |
Dongfeng Automobile Co., Ltd. |
|
Engine model |
ISDe245 30 |
ISDe245 40 |
|
Rated power of engine |
180 kW |
180 kW |
|
Model of gearbox |
8JS118T-B |
8JS118T-B |
|
Tyre |
11.00R20 Steel wire tire |
11.00R20 18PR Steel wire tire |
|
Optional Configuration |
Bucket hanging type turnover feeding mechanism |
Bucket hanging type turnover feeding mechanism |
