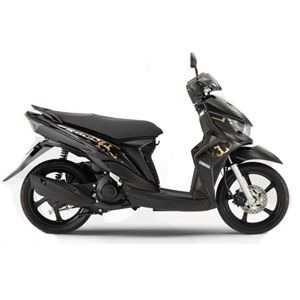

YAMAHA MIO SOUL-I
Ad Information
Price :
Classification :
Condition :
Brand :
Model :
Category :
Subcategory :
Date Posted :
Location :
Ad Description
Dimension&Weight Overall length x width x height: 1,820mm x 675mm x 1,050mm
Seat height: 745mm
Wheelbase: 1,240mm
Minimum ground clearance: 125mm
Dry (without oil and fuel) / Wet (with oil and full fuel tank): 91kg / 94kg
Engine Performance
Engine type: Forced air cooled 4-stroke, SOHC 2-Valve
Cylinder arrangement: Single cylinder
Displacement: 113cm3
Engine type: Forced air cooled 4-stroke, SOHC 2-Valve
Cylinder arrangement: Single cylinder
Displacement: 113cm3
Bore & stroke: 50.0mm x 57.9mm
Compression ratio: 8.8 : 1
Maximum horse power: 5.7kW(8000r/min)
Maximum torque: 7.4 N.m(6500r/min)
Starting system type: Electric starter and kickstarter
Lubrication system: Wet sump
Engine oil capacity: 0.9 liters
Fuel tank capacity: 4.1 liters
Fuel
Carburetor type: NCV24
Electrical
Ignition system type: DC-C.D.I
Transmission
Primary / Secondary reduction ratio: 3.133 / 3.2
Clutch type: Dry, centrifugal automatic,Coil spring
Gear ratio
Transmission type: V-belt automatic
Gear ratios: 2.399 - 0.829
Chassis
Frame type: Steel tube underbone
Caster angle / Trail: 26.5°/ 100mm Tire size (Front / Rear): 70/90-14M/C 34P / 80/90-14M/C 40P
Brake
Brake type (Front / Rear): Single disc / Drum
Suspension
Suspension type (Front / Rear): Telescopic fork / Unit swing
Bulbs(voltage/wattagex quantity)
Headlight: 12V, 32W/32W x
Seat height: 745mm
Wheelbase: 1,240mm
Minimum ground clearance: 125mm
Dry (without oil and fuel) / Wet (with oil and full fuel tank): 91kg / 94kg
Engine Performance
Engine type: Forced air cooled 4-stroke, SOHC 2-Valve
Cylinder arrangement: Single cylinder
Displacement: 113cm3
Engine type: Forced air cooled 4-stroke, SOHC 2-Valve
Cylinder arrangement: Single cylinder
Displacement: 113cm3
Bore & stroke: 50.0mm x 57.9mm
Compression ratio: 8.8 : 1
Maximum horse power: 5.7kW(8000r/min)
Maximum torque: 7.4 N.m(6500r/min)
Starting system type: Electric starter and kickstarter
Lubrication system: Wet sump
Engine oil capacity: 0.9 liters
Fuel tank capacity: 4.1 liters
Fuel
Carburetor type: NCV24
Electrical
Ignition system type: DC-C.D.I
Transmission
Primary / Secondary reduction ratio: 3.133 / 3.2
Clutch type: Dry, centrifugal automatic,Coil spring
Gear ratio
Transmission type: V-belt automatic
Gear ratios: 2.399 - 0.829
Chassis
Frame type: Steel tube underbone
Caster angle / Trail: 26.5°/ 100mm Tire size (Front / Rear): 70/90-14M/C 34P / 80/90-14M/C 40P
Brake
Brake type (Front / Rear): Single disc / Drum
Suspension
Suspension type (Front / Rear): Telescopic fork / Unit swing
Bulbs(voltage/wattagex quantity)
Headlight: 12V, 32W/32W x
