- The Mi Router, something that has already been common knowledge among testers. This wireless router supports dual-band WiFi 802.11 ac and comes with its own 1 TB hard drive. The form of the device itself is rather strange, sporting a elongated cylindrical shape that might remind some of one of Apple's products.

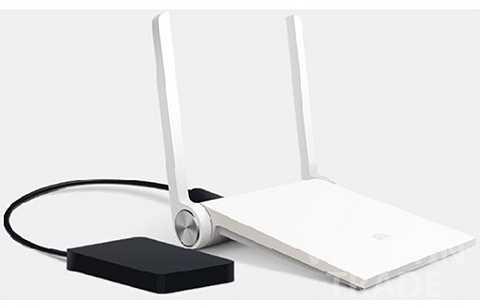

- That resemblance to Apple's devices continues with the smaller Mi Router Mini, which, in all honesty, looks like the Magic Trackpad.
Specifications:
- Hardware Configuration
- CPU : MT7620A 580MHz
- ROM : 16MB SPI Flash
- Memory:128MB DDR2
- Band and Rate:2.4G WiFi 2*2 (Max Rate 300Mbps)
- 5G Wifi 2*2 (Max Rate 867Mbps)
- Antenna : External Dual Band *2
- Machine Interface
- WAN Ports :1 10/100M (Auto MDI/MPX)
- LAN Ports : 2 10/100M (Auto MDI/MPX)
- USB Ports : 1
- Input Ports : 1
- Wireless Parameters
- Band : 2.4GHz and 5.0GHz
- Wireless Channel :2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
- 5GHz Channel: 149,153,157,161,165
- 5GHz DFS Channel:36,40,44,48,52,56,60,64
- Modulation : 11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)
- 11a/g:OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),Q64QAM(48/54Mbps)
- 11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM. QRate Set:MCS0~MCS15
- 11ac:MIMO-OFDM:BPSK,QQPSK,16QAM,64QAM,256QAM. Q Rate Set:MCS0~MCS9
- Receiver sensitivity : 11Mbps:≤-90dBm,54 Mbps:≤-72dBm,
- HT20 QMCS7:≤-69dBm,
- QHT40 MCS7:≤-66dBm,
- VHT20 MCS8:≤-65dBm,
- Q VHT40 MCS9:≤-60dBm,
- QVHT80 MCS9:≤-58 dBm
- Software Configuration
- Operation System : Mini Wift ROM ( base on OpenWRT)
- Support : Web,Windows ,Android ,MacOS , IOS
- Protocol Standards : IEEE 802.11a/b/g/n/ac,IEEE 802.3/3u
- Certification standards : GB9254-2008 YD/T993-1998 GB4943.1-2011
- Product size: 14.3 x 4.5 x 7.3 cm
- Product weight: 256.7 g
- Package size: 15 x 5 x 16.5 cm
- Package weight: 466.7g
