UPS: Prolink 650VA & 1200VA (brand new)
Ad Information
Ad Description

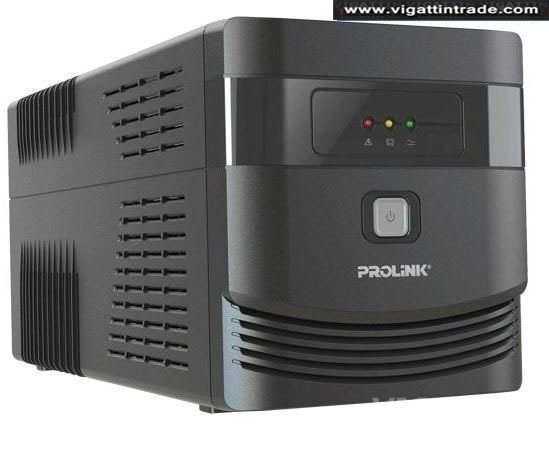

Prolink UPS
650 VA P 1,750
| Enerhome Line Interactive UPS 650VA with AVR |
1200 VA 3,250
| EnerHome Line Interactive UPS 1200VA with AVR + USB port |
Brand New with 1 Year Distributors Warranty
650 VA model
1200VA model
| FEATURES: | |||
| · Boost / Buck TRUE AVR for Voltage Stabilization | · Automatic Voltage Regulation (AVR) | ||
| · Auto restart while AC is recovering | · Short circuit protection | ||
| · Off- Mode Charging | · 100% Stabilized output power | ||
| · Cold start function | · 100% backup Guarantee | ||
| · Wide Input Voltage range and compatible with small generators | · Intelligent battery management | ||
| · Overload protection | |||
| SPECIFICATIONS: | |||
| Capacity | 650VA (360w) | 1200VA | |
| Input | |||
| Voltage Range | 140 - 300V ± 5% | 140 - 300V ± 5% | |
| Frequency | 50Hz/60Hz (Auto-sensing) | 50Hz/60Hz (Auto-sensing) | |
| Phase | Single + GND | Single + GND | |
| Output | |||
| Voltage Range | 230VAC +12% -14% | 230VAC ± 10% | |
| Battery Mode | 230VAC ± 10% | 230VAC ± 10% | |
| Frequency | 50Hz ± 1% (Battery Mode) | 50Hz ± 1% (Battery Mode) | |
| Waveform | - Simulated Sine Wave (Battery Mode) | - Simulated Sine Wave (Battery Mode) | |
| - Sine Wave (AC Mode) | - Sine Wave (AC Mode) | ||
| Transfer Time | 2ms typical | 2ms typical | |
| Battery | |||
| Type | 12V/8.2AH - 1pc | 12V/8.2AH - 2pcs | |
| Backup Time | 8 - 20 minutes depending on load | 8 - 40 minutes depending on load | |
| Recharge Time | 90% capacity after 4 - 6 hours | 90% capacity after 4 - 6 hours | |
| Protection / Monitoring | |||
| Short Circuit Protection | - Line Mode - Fuse & Software Protection | - Line Mode - Fuse & Software Protection | |
| - Battery Mode - Software Protection | - Battery Mode - Software Protection | ||
| Surge Protection | Yes | Yes | |
| Alarm | Audible & Visual | Audible & Visual | |
| Overload Protection | - Line Mode = 100 - 120% 5mins change to fault mode | - Line Mode = 110 - 120% alarm for 5mins & shutdown | |
| >120% change to fault mode immediately | >120% shutdown immediately | ||
| - Battery Mode = 100 - 120% 5 secs shutdown | - Battery Mode = 100 - 110% alarm & shutdown in 10 sec | ||
| >120% shutdown immediately | >120% shutdown immediately | ||
| Intelligent Battery | Prevent overcharging of battery | Prevent overcharging of battery | |
| Management | Protect battery and prolong battery life | Protect battery and prolong battery life | |
| UPS Protection | Load Auto Sensing and Abnormal Protection | ||
| Interface |
|
RJ11 | |
| USB Connector | AC Fault, Battery Low, Shutdown UPS | AC Fault, Battery Low, Shutdown UPS | |
| Software | Support Windows 2000/2003/XP/Vista/2008/7, Linux, Unix and Mac | Support Windows® 2000/2003/XP/Vista/2008/7, Linux, Unix, and MAC | |
| General | |||
| Noise Level | <40dB | <40dB | |
| Temperature | 0°C - 40°C | 0°C - 40°C | |
| Humidity | 0 - 90% | 0 - 90% | |
| Power Factor | Up to 0.7 | Up to 0.7 | |
| Built in AVR | TRUE Full AVR (3 steps) | TRUE 3-step AVR |
