SUPERGEN BY DIGITAL CREATIONS PROFESSIONAL GENLOCKER FOR AMIGA COMPUTERS

SUPERGEN is the first true professional studio quality genlocker device that connects Amiga computers to your professional video equipments.

With its revolutionary hi-resolution graphics and processing power, the Amiga represents a sophisticated video production solution.
The SUPERGEN NTSC GENLOCK and overlay device is the link between the Amiga's video potential and your own video productions.

SUPERGEN allows you to create and produce professional broadcast quality video with special effect graphics and titles created on your Amiga.

Since SUPERGEN does not distort incoming video, the quality of the video out equals the quality of the video in.
SUPERGEN does not encode and then re-encode the incoming video; it simply encodes the Amiga's RGB signal into RS-170A
and then overlays the encoded signal into the incoming video.

SUPERGEN OUTSTANDING FEATURES:

True Broadcast Quality Video Output.

Real NTSC RS-170a. Accurately locks to non-time base corrected signals such as VCR output. Very accurate RGB encoder for true Amiga graphic colors.

Two independent dissolve controls.

SUPERGEN is the only genlock with dissolve capabilties built-in! Two slide pots control the mixture of external video and Amiga graphics.
The first slide controls the ratio of Amiga color 0 to external video. The second slide control the ratio of all other Amiga colors to external video. Both dissolves can be controlled remotely by Amiga software.

Auto-Fade Mode

The black level of the Amiga graphics determine the fade level.

Dual Video Outputs

Professional Key Out

Output to Video Switchers with Key in capability for special effects

Switchable Chroma Notch Filter

Helps eliminate chroma artifacts.

Selectable Blanking, Internal or External.

Professional BNC Connectors.

AMIGA A500, 1000 and 2000 compatible.

SUPERGEN SPECIFICATIONS:

External genlock and video encoder
Genlocks to external NTSC video
Encodes Amiga RGB into NTSC video
Overlays Amiga graphics onto external NTSC video
Selectable 3.58 MHz notch filter
64 levels of dissolve
Selectable internal and external blanking source

Input/Output Connectors

RGB In - receives the RGB output from the Amiga
RGB Pass Thru (DB25 converted to DB23) - display Amiga graphics on an RGB monitor
Key Out (BNC) - key signal for video switcher, tells when Amiga colour 0 is present or not
Video In (BNC) - source video from VTR, sync-generator, etc.
Video Thru (BNC) - untouched signal from Video In
Video Out (2× BNC) - combined output of input video and the encoded Amiga graphics

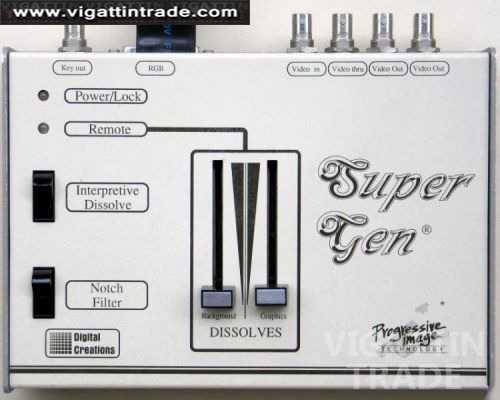

Controls

Graphics Dissolve Slider - controls the percentage of foreground graphics against external video
Background Dissolve Slider - controls the percentage of background colour against external video
Interpretive Dissolve Switch - controls whether or not the darkness of an Amiga colour is to be interpreted as a level of dissolve
Notch Filter Switch - removes colour artifacts or some forms of flicker

This SUPERGEN NTSC Genlock Device was a back-up spare unit that is still new in box but was never used.

The new unit is still in its original plastic seal and is complete in the box with the following contents:

1. SUPERGEN Genlock Unit

2. SUPERGEN Owner's Manual

3. SUPERGEN Software Floppy Disk

4. Jack Screw with Assembly Instructions

Manufactured by Progressive Image Technology, USA

Note: This SUPERGEN genlock device for Amiga computers is for professional use on NTSC Broadcast TV standards only.

For on stock availability, kindly call 0917-9260300. Fixed price at P34,000.00
