ALL STOCKS ARE AVAILABLE IN CEBU!

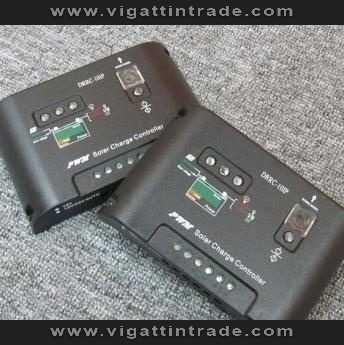

20A 12V/24V AUTO
solar charge controller

Product Features:
Temperature Sensor
Internal Temperature compensation
PWM series battery charging
Detects day and night using PV array, Timer settings
State of Charge display (SOC)
Microcontroller Digital Accuracy

Electronic Protections:
Overload solar and load
Reverse polarity
Reverse current at night
High voltage disconnect
Short circuit Protection



Features

Microcontroller digital accuracy
PWM Charge mode
State of charge (SOC)
Temperature compensation
Automatic detection of the voltage & full automatic operation
External temperature sensor
Big terminals and big distance between terminals


Display

4 LED indicators
PV: Green-charging
Battery: Green-Yellow-Red
Load: Red-output on
Red flashing & blinking shows mistakes
The fourth LED shows timers


solar charge controller for FL-SC series
12Volt 24Volt
Rated solar input : 20A 20A
Rated load : 20A 20A
: Controlled by state of charge:
: 11.4-11.9V/22.8-23.8V
low voltage diconnection Fuction : Controlled by voltage:11.0/22.0V
25% Current overload : 1min. 1min.
Load disconnect : 11.1V 22.2V
Load reconnect : 12.6V 25.2V
Equalization voltage(10minutes) : 14.6V 29.2V
Boost voltage(10 minutes) : 14.4V 28.8V
Float voltage : 13.6V 27.2V
Temp Comp.(mV/ ) : 30mV 60mV
Temperature Compensation : 4mv/( C*cell)
Temperature: : -35 to +55
Norminal voltage : 12V/24V, automatic recognition
Terminals : For wire sizes to 6m
Internal protection : IP22
Material : PC+Al
Certificates : CE,ROHS
Warranty Period : 1 year
Single Size : 140 90.5 28.5mm
: 145 90 35mm/30A
Single Weight : 210g 240g/30A



ITEM SELLING ( 75 PESOS PER WATT)
SOLAR PANEL -POLY -CRYSTALLINE
200W 15,000.00
100W 7,500.00
50W 3,750.00
30W 2,250.00
20W 1,500.00
10W 750.00

SOLAR CHARGE CONTROLLER
10A 12V/24V 900.00
20A 12V/24V 1,300.00
30A 12V/24V 2,000.00

PORTABLE CHARGER
5W CHARGER 1,200.00

SOLAR RECHARGEABLE FAN
16" 3 SPEED W/ LED 1,200.00
EMERGENCY LIGHT (FAN ONLY )

DESKFAN 1,100.00
( FAN ONLY)
!FAST CHARGING VARIES ON SOLAR PANEL !

PURE SINEWAVE INVERTER
HEAVY DUTY
SKN-M 500VA 12V 7,340.00
SKN-M 1KVA 12V 10,180.00
SKN-M 1KVA 24V 10,180.00
SKN-M 2KVA 24V 17,350.00
SKN-M 3KVA 48V 26,100.00
SKN-M 5KVA 48V 41,655.00

SKN-P 300W 2,800.00
SKN-P 500W 4,600.00


VRLA BATTERIES NPS - SERIES - DEEP CYCLE BATTERY

NPS 12AH/12V 840.00
NPS 17AH/12V 1,070.00
NPS 33AH/12V 4,100.00
NPS 70AH/12V 5,250.00
NPS 100AH/12V 7,100.00
SOLAR LANTERN 1,200.00

2KW TRANSFORMERLESS 45,000.00
ONGRID INVERTER

VIDEO DOOR CONTROL 3,000.00
WATT METER 750.00
VEHICLE TRACKING DEVICE 6,000.00
CAR DVR 1,200.00

DVR KIT W/ 17,000.00
500GB HDD SEAGATE SATA
