This is a smaller system (85 liters) for 2 people, bigger systems available.

IF YOU ARE BUILDING A HOUSE YOU SHOULD READ THIS FIRST.REAL BIG SAVINNGS FROM SOLAR WATER HEATER.

for more info, pls visit our website: http://solarthermotank.com/

PARTIAL LIST OF PROJECTS:

What are the advantages of Solar over electric heaters.( pls read our THERMO TANK FRAME ADVANTAGE BELOW)

No Electrical risk
No Danger
No Electrical /gas break downs
No High maintenance cost
No Complicated repairs
No Monthly Electrical Bills

24 hour Standby Hot Water is Always free. For Life.

We guarantee it works and makes hot water or your money back.



ELECTRIC HEATERS CONSUME A LOT OF ELECTRICITY!

Check the energy they use. Its in KW.(kilowatt)

From 3kw to as high as 10KW.
It consumes more than your AIRCON on a per hour basis.
1000w =1 kw
3.5KW (kilowatt) is like turning 3.5 units of aircons ON for the duration of your bath.

Electric heaters should be used as secondary source of hot water.Not the main source since we have free abundant sunlight.

OUR THERMO TANK ADVANTAGE(Included in the package)

1)Food Grade Stainless 304 tank(.5mm thick) (standard  use .4mm)

 2)Rigid Lightweight Aluminum Frame-No rust

 3)Roof Ready 5 degrees Frame(no more cutting to fit roof)save on cost of labor

 4)Automatic Water Refill -Zero Electricity-(Free Promo worth 2500)

 5)With SuperLife Sacrificial Anode to extend the life of the tank(Optional)



How does Thermo Tank tube type  compare to “flat plate “ type?

Earlier solar water heaters use "flat plate" technology which has been around for many years. It works, but is very expensive and complicated, but now there is a better alternative.THERMO TANK SOLAR WATER HEATERS  use state-of-the-art technology based on evacuated glass tubes and highly efficient heat transfer technology.

Flat plate solar water heaters are only at their maximum efficiency in the middle of the day. A great deal of the sun’s energy is simply reflected off the flat glass panels, especially in the morning and afternoon.In fact, a Thermo Tank solar collector will absorb up to 50% moreof the sun's energy than a comparably sized flat platesolar collector. Faster heating time means you dont need ELECTRIC BACKUP.It means big savings.Check illustration below



Can I use it even if we have cold climate like Baguio, Tagaytay or Antipolo?

Yes, it can be used on areas with cold climate.(Our system is proven in Baguio-check pics)The tubes consist of 2 layers of borosilicate glass with a vacuum between these 2 layers. This evacuated layer in the tubes acts much like a thermos flask, retaining about 97% of the energy absorbed from the sun. This helps increase the efficiency of the collector and also protects it from the effects of cold air. As a result, an evacuated tube solar collector is the perfect system for very cold areas.Because the system is so efficient it does not require full sun and can work in cloudy or even rainy days.



How long does it take and what is the cost to install my solar hot water system?

Installation is easy. Because THERMOTANK systems are lightweight, and comes with all the brackets and frame for the whole system, all you need to do is mount it on the roof. You can expect an average installation to take 3-5hours.

What are the savings that i can get from using solar over instant shower heaters?

Take the challenge

1)Which do you think is more expensive

2)How much do you think you pay for your water heating bill. If you dont have an idea,its ok most people dont know.Go to the pictures and you will see the Actual Meraclo computations.

You will be surprised how much money you are wasting everyday.

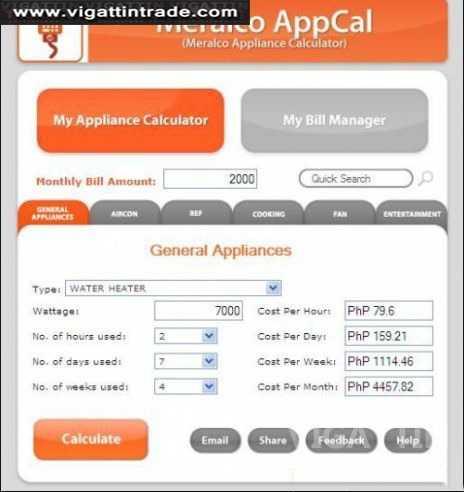

Answer- The cost is almost the same.You can check picture of actual Meralco appliance computations below.

Can I use Thermo Tank Solar collector with my existing centralized electric hot water system?

Yes, the THERMO TANK Solar Heater can be retrofitted to most existing tanks  by using their existing hot pipeline.Then you don’t have to pay gas/electricity to keep your hot water hot. Unlike centralized electric heaters Our water are kept warm WITH OUT  any electricity in its INSULATED TANK.



What happens if the Evacuated Tubes are damaged or broken by accident?

The THERMO TANK TUBE is very strong and uses toughened glass which is highly resistant to damage under various weather conditions.Just like your house glass windows, it will not break unless it is intentional and would require a great deal of impact to break it. If tubes do need to be replaced this can be done quickly and easily for only a small cost. You simply change the broken tube Not the whole panel.

What if the hot water is used up?

Our automatic water refill system makes sure it will replenish itself once you use the water. It is a mechanical automatic valve that will open up and use ZERO electricity.

Price and the computed number of people for the tank sizes.

10 tubes-85 liters -2-3 people (11,980)

12 tubes -102 liters -2-3 people (14,500)

14 tubes -120 liters -3-4 people (16,888)

16 tubes -136liters- 4 people ( 19,500)

18 tubes -153 liters -4-5 people (22,500)

20 tubes -170liters -5 people (24,000)

24 tubes -204 liters -6-7 people (29,000)



Where can I use the Thermo Tank Solar Water Heater?

For Home-bath, shower, lavatory, laundry, car wash, kitchen, cooking, car wash, pets

Do I need to use special pipes for  hot water?

We recommend you to use PPR pipes. It is used for the hot water pipe so it can withstand the heat of the hot water. This means your hot water can be available also in the lavatory, kitchen sink,laundry area etc as long as the hot water pipe has a line to those areas and not limited to showers. This is specially helpful in cold climate areas where water is cold.We can offer the PPR pipes at a fraction of the cost in major stores.



Where else can I use Thermo Tank solar water system?

It is almost limitless-

Home use,

resorts,

hotels,

motels,

factories,

laundry shops.

As long as hot water is needed and you have an idle rooftop, it can be used.



Can i install the solar hot water system in my existing home with no hot water line?

Yes its fairly easy as we will get a new hot water line ourside the house and not inside so the interior remains untouched.Cost of labor will vary from 3000 upwards.The tubes will vary on the length of the pipes needed.

Where do I install the Thermo Tank?

It can be installed over the roof, as long as the tank is higher than the place where you will need the water.

Do I need water pump to pump water from the Thermo Tank?

No need for special pump. It uses gravity. This system is easy to run.As long as water can reach the place where the solar heater tank is, that is enough. Once the water enters the tank, gravity will do the rest for its hot water line. Its simply very easy to use. No electricity consumed.IN FACT ZERO ELECTRICITY.



Can I put electrical backup in case I need it.

Yes, Automatic  Digital controller with electric heater backup is an option. It will heat up your water in case you need it.Basically, in 365 days of the year, you can count with your fingers how many days you will use the heater backup. It will not be very often, maybe not at all. As long as the system fits your requirements and the right size for your family, you will never need electric back up bec the stored hot water is enough for your consumption.



How about when its cloudy, do we still have hot water?

Yes, cloudy days can still produce hot water,the difference is only the rate of making the hot water is slower, A few hours of accumulated exposure will be enough to recharge the system. Once hot water is produced,it is stored in the insulated tank,where it stays hot.All it needs is a few hours of accumulated sunshine on cloudy days to heat up the water.
.
Will the 170liter tank(family size type)be enough for my needs?How will i know which one is suitable for me?

The Thermo tank water system produces HOT WATER, not warm water, so everytime you will need to use it,you will need to mix it with cold water. So you will not really consume the whole tank but only a small fraction of the HOT WATER to make warm water for domestic needs.The 170liter system is computed for 5-6 people.a typical size family.

What other savings or advantages do we get from Thermo Tank Solar Heater?
Every day of every year, you can SAVE 50% on LPG cost for boiling your water for cooking.You can use the PRE-BOILED HOT WATER FOR COOKING,you save upto 50% of fuel (LPG) cost for boiling water for cooking as it will take a shorter time for water to reach boiling point.

How about Management /Manufacturing /International Standards
Our system comply with the most rigorous manufacturing standards including the ISO 9001:2000,GB/T 19001-2000 and the LVD European Directives 2006/95/EC
These same Thermo Tank Solar Water system are sold in European countries at a far more expensive price.

Can I use a Thermo Tank Hot Water system for my investment property?

Thermo Tank Hot Water system will provide your real estate portfolio with a number of advantages such as reducing your property's gas or electricity bills and can increase the overall value of your property. The usual value added to any property with this modern feature is 3 to 4 times the value of the actual system.



Where can I get my Thermo Tank Solar Hot Water System.

You can call 668-0708 or email us at thermo_tank@yahoo.com.



0919-5577710
IT WORKS OR YOUR MONEY BACK.
We guarantee this system will give you very hot water or your money back.



This is promo only

Plus2000 for (Automatic water refill)- free(promo)
Plus 2000 for upgrade to Aluminum Frame- free(promo)

58mm diameter tube x 1800mm lenght tube
This one is a more powerful system.

 Food Grade Stainless Steel - Heat resistant – will not warp or deform easily One-time investment only; does not corrode.
Sanitary – water remains clean and clear, Affordable and cost-effective Lightweight and easy to install

Water Temp will reach upto Hot coffee level(too hot for your hand to touch) OR can reach temparature hot enough to cook instant noodles(for temparature illustration only)

FACTS
Melting point of ice - 1 degrees celsius
Boiling point - 100 degrees celsius
Normal water - 20 to 25 degrees celcius

 I Want to Buy,where do i start?

 1)How many people will use-This will give u an idea on the size of the tank.

 2)Where is your location-We can send manual to provincial buyers.It is very easy to install.only 3 main components.We can guide your tech people. For Luzon buyers, we can install it.

 3)What do i need to prepare-Hot water piping,PPR pipes meant for hot water.We have them too.One Cold water line into the tank, one hot water line out from the Tank.Shower mixer is then used to regulate the temp when using it,pure hot water is too hot for direct shower.

 4)What is the best Location-The heat of the water comes from the sun, we want to have very least shadow through out the day on the tubes to get maximum result.

 5)How do i pay.If provincial buyer,by bank to bank transfer.Then we set up door to door delivery if it is covered by our areas.Major Cities are covered.Approx cost is 1600-3000.Depends on size of tank and location of your Area.

We can install all over Metro Manila upto Pampanga ,Cavite,Tagaytay and Antipolo to Launion or Baguio.Price of installation depends on location.

ATTN All architects, engineers,contractors, pls dont hesistate to contact me.
We can ship all over the Philippines via sea cargo.

thanks

Danny Barretto
668-0708
0919-55-777-10

Also available- Thermo Pipes(PPR pipes for hot water.
