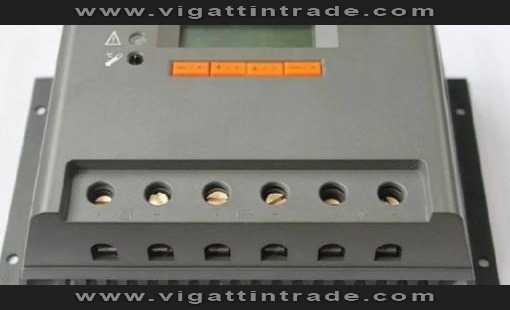

VIEWSTAR VS6048N 12V/24V/36V/48V, 60A
ViewStar series solar controller is our new generation controller for off-grid solar system, such as street light, solar home system or small power station etc.

Overview
Features:
Adopt graphics dot-matrix LCD screen and HMI (human-machine interface) with 4 buttons, integrated menu displaying and operation
32 bit MCU with high speed
12 bit A/D high-precision sampling to ensure accuracy
Excellent EMC design
High efficient Series PWM charging
Use MOSFET as electronic switch
Widely used, automatically recognize day/night
Humanized design of browser interface, undertake every operating conveniently
Full control parameters setting and modification, diversified load control mode
Gel, Sealed and Flooded battery type option
Adopt temperature compensation, correction algorithm for charging and discharging parameters automatically

Electronic Protections:
Overheating
Over discharging
Over charging
Load overload
Load short circuit
PV reverse polarity
Battery reverse polarity

Electrical parameters:

VS6048N

Normal system voltage : 12V/24V/36V/48V auto work

Rated battery current : 20A 30A 40A 50A

VIEWSTAR VS6048N : 12V/24V/36V/48V, 60A

Max. battery voltage : 64V

Self-consumption : 18mA

Communication : TTL232 / 8pin RJ45

Equalize Charging Voltage : Sealed 14.6V;x2/24V Flooded 14.8V;x2/24V

Boost Charging Voltage : Gel 14.2V;x2/24V
: Flooded14.6V;x2/24V
: Sealed 14.4V;x2/24V

Float Charging Voltage : 13.8V;x2/24V

Low Voltage Reconnect Voltage : 12.6V;x2/24V

Low Voltage Disconnect Voltage : 11.1V;x2/24V

Temp. compensation : -30mV/ /12V 25

Relative humidity : 10%~90% Non-condensation

Working temperature : -20 to +55

Enclosure : IP30


ITEM SELLING ( 75 PESOS PER WATT)
SOLAR PANEL -POLY -CRYSTALLINE
200W 15,000.00
100W 7,500.00
50W 3,750.00
30W 2,250.00
20W 1,500.00
10W 750.00

SOLAR CHARGE CONTROLLER
10A 12V/24V 900.00
20A 12V/24V 1,300.00
30A 12V/24V 2,000.00

PORTABLE CHARGER
5W CHARGER 1,200.00

SOLAR RECHARGEABLE FAN
16" 3 SPEED W/ LED 1,200.00
EMERGENCY LIGHT (FAN ONLY )

DESKFAN 1,100.00
( FAN ONLY)
!FAST CHARGING VARIES ON SOLAR PANEL !

PURE SINEWAVE INVERTER
HEAVY DUTY
SKN-M 500VA 12V 7,340.00
SKN-M 1KVA 12V 10,180.00
SKN-M 1KVA 24V 10,180.00
SKN-M 2KVA 24V 17,350.00
SKN-M 3KVA 48V 26,100.00
SKN-M 5KVA 48V 41,655.00

SKN-P 300W 2,800.00
SKN-P 500W 4,600.00


VRLA BATTERIES NPS - SERIES - DEEP CYCLE BATTERY

NPS 12AH/12V 840.00
NPS 17AH/12V 1,070.00
NPS 33AH/12V 4,100.00
NPS 70AH/12V 5,250.00
NPS 100AH/12V 7,100.00
SOLAR LANTERN 1,200.00

2KW TRANSFORMERLESS 45,000.00
ONGRID INVERTER

VIDEO DOOR CONTROL 3,000.00
WATT METER 750.00
VEHICLE TRACKING DEVICE 6,000.00
CAR DVR 1,200.00

DVR KIT W/ 17,000.00
500GB HDD SEAGATE SATA
