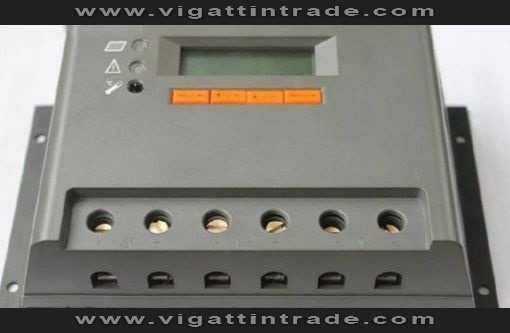

VIEWSTAR VS6048N 12V/24V/36V/48V, 60A
ViewStar series solar controller is our new generation controller for off-grid solarsystem, such as street light, solar home system or small power station etc.

Overview
Features:
Adopt graphics dot-matrix LCD screen and HMI (human-machine interface) with 4 buttons, integrated menu displaying and operation
32 bit MCU with high speed
12 bit A/D high-precision sampling to ensure accuracy
Excellent EMC design
High efficient Series PWM charging
Use MOSFET as electronic switch
Widely used, automatically recognize day/night
Humanized design of browser interface, undertake every operating conveniently
Full control parameters setting and modification, diversified load control mode
Gel, Sealed and Flooded battery type option
Adopt temperature compensation, correction algorithm for charging and discharging parameters automatically

Electronic Protections:
Overheating
Over discharging
Over charging
Load overload
Load short circuit
PV reverse polarity
Battery reverse polarity

Electrical parameters:

VS6048N

Normal system voltage : 12V/24V/36V/48V auto work

Rated battery current : 20A 30A 40A 50A

VIEWSTAR VS6048N : 12V/24V/36V/48V, 60A

Max. battery voltage : 64V

Self-consumption : 18mA

Communication : TTL232 / 8pin RJ45

Equalize Charging Voltage : Sealed 14.6V;x2/24V Flooded 14.8V;x2/24V

Boost Charging Voltage : Gel 14.2V;x2/24V
: Flooded14.6V;x2/24V
: Sealed 14.4V;x2/24V

Float Charging Voltage : 13.8V;x2/24V

Low Voltage Reconnect Voltage : 12.6V;x2/24V

Low Voltage Disconnect Voltage : 11.1V;x2/24V

Temp. compensation : -30mV/ /12V 25

Relative humidity : 10%~90% Non-condensation

Working temperature : -20 to +55

Enclosure : IP30


AVAILABLE:
SOLAR PANEL, SOLAR CHARGE CONTROLLER, DEEP CYCLE BATTERY, 15W DC/AC STANDFAN, WATTMETER, CAR HD CAMERA, SOLAR MOBILE CHARGER, SOLAR LANTERN, etc..
