Specs

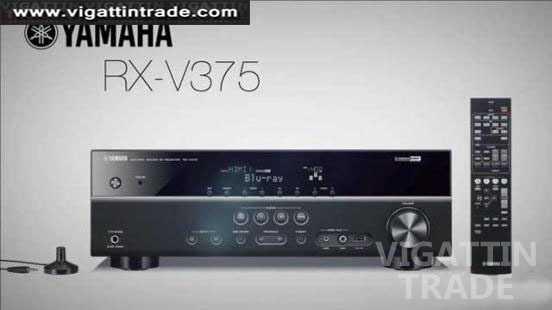

AV Receiver

Amplifier Section Channel 5.1
Rated Output Power (1kHz, 1ch driven) 100 W (8 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 70 W (8 ohms, 0.09% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 110/130/160/180 W
Surround Sound Processing CINEMA DSP Yes
DSP Programs 17
Audio Features Compressed Music Enhancer Yes
Surround Sound Processing SILENT CINEMA / Virtual CINEMA DSP Yes
Dolby TrueHD Yes
Dolby Digital Plus Yes
DTS-HD Master Audio Yes
Audio Features YPAO sound optimization Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
Audio Delay Yes (0-250 ms)
192kHz/24-bit DACs for all channels Yes (Burr-Brown)
Video Features 4K Ultra HD Pass-through Yes
HDMI 3D passthrough Yes
HDMI Audio Return Channel Yes
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes
Extensive Connection HDMI Input/Output 4 / 1
HDMI CEC Yes
USB Input iPod /iPhone , USB memory, portable audio player
Front AV Input USB/Mini-jack/Composite
Digital Audio Input/Output: Optical 2 / 0
Digital Audio Input/Output: Coaxial 2 / 0
Analog Audio Input/Output 4 (front 1) / 2
Component Video Input/Output 2 / 1
Composite Video Input/Output 4 (front 1) / 1
Preout Subwoofer
Headphone Output 1
Tuner Section FM/AM Tuner Yes
User Interface On-screen display Yes (Color OSD)
SCENE SCENE (4 sets)
Remote Control Unit Yes
General Standby Power Consumption (IR only) 0.3 W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D) 17-1/8 x 6 x 12-3/8
Weight 16.3 lbs.
