Digital SOUND Level Meter® with USB COMPUTER Connection
Sound level meters are commonly used in industrial noise pollution studies. Used by all Professional Engineers

Sound level meter is used to measure the sound pressure level; these devices are primarily used to determine noise pollution levels. Different model sound level meters have different methods of operation though most have more or less the same functionality.

They are generally small (hand held), portable and use batteries. The sound level meter will have a microphone, LCD or analog display and function buttons. The amount of function buttons relates to the complexity of the unit but most have a power, hold and minimum and maximum function. Range, time and weighting are other common function buttons.

Sound Level Meter has a wide dynamic range from 30 to 130dB. It has different frequency weighting A and C to respond to human sense or machine monitoring purposes. For different sound pattern, it also supplies fast and slow time constant setting.

clips, 9V battery and user manual

The Compact Digital Sound Level Meter (SPL) is a must have tool for those whose work is associated with sound metering, such as Audio Repairers, Installation Services, Mechanics, Occupation Health/ Safety Testers and as well as the home hobbyist

Suitable where accuracy, repeatability or validation is required. This sound level meter also includes a calibrator so you can verify and authenticate your results. Scales for A and C weighting are included so it is ideal for vehicle noise testing, race scrutineering, traffic or aircraft noise testing or any evidence-based noise testing. Rugged and easy to operate for the garage environment It also has analogue outputs so you can connect it to other equipment such as spectrum analysers. Conforms to IEC 61672-1 Class 2 for sound level meters.

Furthermore the Compact Digital Sound Level Meter (SPL) supports a USB interface thus allowing you to connect direct to your windows based computer, thus allowing detailed reporting straight of your computer. Compact Digital Sound Level Meter (SPL) when used with a computer is compatible with Windows 95, 98, ME, NT, XP, Vista, Win 7


Features: • Compliant with Type 2 (Class 2) standards • A & C weighting scales • Tripod mounting thread • External calibrator • Maximum hold feature • Min/Max measurement • Over and under-range display • Analogue outputs • Fast and slow response • Backlit LCD


• USB Interface For Computer Connection

• Compatible with Windows 95, 98, ME, NT, XP, Vista, Win 7


Specifications:

Accuracy: ±1.4dB
Calibration: 94, 114dB
Level Range: LO 30dB - 80dB
Level Range: Med: 50dB - 100dB
Level Range High: 80dB - 130dB
Level Range Auto: 30dB - 130dB
Dynamic range: 50dB
Microphone: 1/2" electret condenser microphone
Resolution: 0.1dB
Analo Output: Ac/DC outputs, AC=1Vrms, DC=10mV/dB
Output sound pressure levels: 114dB and 94dB
Output Frequency: 1000Hz +/- 4%
Accuracy: +/- 0.5dB
Update: Every 0,5 seconds
Frequency range: 31.5Hz - 8kHz
Dimensions: 278(L) x 76(W) x 50(D)mm

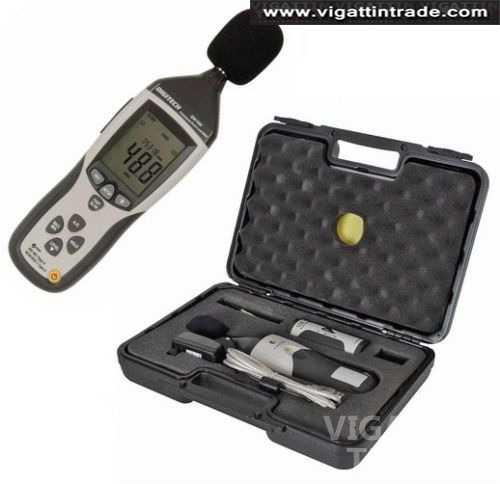

Included Contents: • Sound Level Meter

• Sound Level Calibrator

• Mini Tripod Stand

• Wind Shield

• Mini Flat Blade Screw Driver

• Power Supply

• 9V Battery

• USB Cable

• Manual

• CD/Driver Disc
