Product Description:

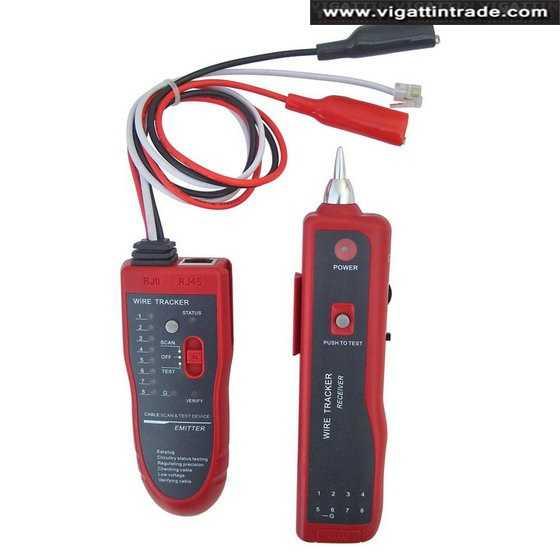

RJ45 RJ11 Network Tester Wire Tracker for Telephone Wire/LAN Cable (Red)
WT-26 Wire Tracker
Find wire on all types of connected operating Ethernet switch/Router/PC terminal
* Non-Contact probe audibly identifies selected wire or cable
* Easy trace wire form source to termination
* Adjustable sensitivity control improves wire identification and eliminates false detection
* Continuity test-audible/visible indication
* Network wire collation function and sequence collation
* Open circuit or short circuit testing function
* DC level testing function
* Low voltage alarm
* With earphones
Function:
1. Trace telephone wire/LAN cable,
2. Trace wire in electrical system
3. Verify LAN cable condition
4. Continuity test
5. DC level testing function.
6. Bright white LED flash light
Important :
1. Find wire on all types of connected operating Ethernet switch /Router/PC terminal. 2. Rapidly find the target wire from among plenty of telephone wires . 3. Rapidly find the target wire from among plenty of network wires. 4. It can take place of cable tester. 5. Compare the volume of the “tout” sound and the brightness of the signal indicator. Then you can find the target wire which has the highest volume and brightest indicator
specification:Name : Wire tracker ( cable scan & finding) Product name Wire tracker(cable scan & finding) The max working current Emitter ??10mA Receiver ??30mA Signal transmission format Multi-frequency impulse Signal output electric status 8Vp-p Distance of signal transmission ??3km
Both ends of your cable must be disconnected from the signal source such as
power, video, data or telephone connections or you will send the transmitter
tone across your entire network. This will result in a very short distance for
the transmitter tone to be sent. The receiver probe must be able to make contact
with the bare wire on the opposite end of the cable you are transmitting the
tone on. Therefore, this kit will not work for finding wiring inside walls or
buried underground cables that you cannot touch the bare wiring with the
receiver probe.
Batteries
9.0V 6F22 Battery
The max working current
Emitter
≤10mA
Receiver
≤30mA
Dimension
Emitter
126×49×34mm
Receiver
155×49×34mm
Weight
345g
The list of package 1. Emitter 1piece 6. Cable with crocodile clamp 1piece 2. Receiver 1piece 7. RJ45 network cable 1piece 3. 9V battery 2pieces 8. Instruction manual 1piece 4. Earphone 1piece 9. Toolkit 1piece 5. RJ11 telephone cable 1piece 10.Color box 1piece
