Ohaus EX124 Analytical Balance

preview
view images

Ad Information

Classification :
Condition :
Category :
Subcategory :
Date Posted :
Location :

Ad Description

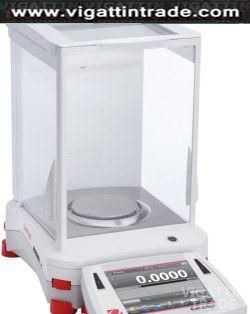

Ohaus® - EX124 - Analytical Balance

Completely re-imagined from the ground up, the OHAUS Explorer® rises to a whole new level. Explorer delivers accurate results within seconds, improving operator efficiency, productivity and throughput, with a stabilization time up to 50% faster. Featuring SmarText™ 2.0, OHAUS’ easy-to-use graphical software offering 14 applications, QWERTY and numeric keypads, and below-minimum weight indication. Explorer’s draftshield provides ample access and visibility to the weighing chamber and features antistatic coated glass. Explorer features four touchless sensors for hands-free operation of print, calibration, tare, and other selectable functions. AutoCal™ ensures performance and assists with routine maintenance by automatically calibrating the balance daily. Explorer is the industry’s most easy-to-use balance, featuring leveling assistance and instructional messaging for quick out-of-the-box setup and use. Explorer’s modular design features a color touch display that can be separated from the weighing base.


Special Features:

  • Ultra-Fast Stabilization Time
  • Four Touchless Sensors
  • Touch Color VGA Display with Icons
  • Display can be separated from weighing base
  • Illuminated Up-Front Level Indicator
  • Fully Automatic Internal Calibration
  • Multiple Weighing Units (g,mg,kg,oz,lb,ozt,ct,dwt,GN, Newton, Momme, Mesghal, Tael, Tical, Tola, 3 custom units)
  • Superior Overload and Underload Protection
  • Multiple Application Modes
  • Percent Weighing - Measure the weight of a sample displayed as a % of a pre-established reference weight.
  • Dynamic (Animal) Weighing - Weigh an unstable load. Balance takes an avg. of weights over a time period.
  • Totalization - Measure cumulative weight of multiple items. Cumulative total may exceed balance capacity.
  • Differential Weighing - Store sample weights and calculate the difference between initial weights and final weights.
  • Peak Hold - Capture and store hightest weight in a series. Both stable and unstable weights are captured.
  • Parts Counting - Count samples of uniform weight. Choose std. Counting, check counting or fill counting.
  • Pipette Adjustment - Check pipette values by weight analysis, with built-in water density table.
  • Check Weighing - Compare the weight of a sample against target limits. Choose from std, nominal-weight or nominal-percent.
  • Filling - Fill a container to a target weight. Progress bar displays filling status.
  • Formulation - For compounding and recipe making. The number of components can be from two to 99.
  • Density Determination - Determine density of solids more dense than water, solids less dense than water, liquids or porous material.
  • Ingredient Costing - Determine cost of formula or recipe based on known cost/quantity of components or ingredients.
  • SQC - Monitor and/or control processes to eliminate under and over filling.
  • Library Function to store and recall customized applications
  • Alternate RS232 command feature adapts the balance to existing data acquisition software
  • Data Transfer Function Outputs Data Directly to Microsoft Excel
  • Standard USB & RS232 Ports
  • Optional 2nd RS232 and Ethernet
  • Security Bracket
  • Intuitive Operating System
  • Power Auto-Off
  • Menu Lock Switch
  • QuadraStance design w four adj. thumbwheels for superior stability







Specifications:
Ohaus - EX124
Capacity 120 g
Readability 0.1 mg
Pan Size Ø 3.5" / 90 mm
Repeatability ±0.0001g
Linearity ±0.0002g
Stabilization Time ≤2 sec
Calibration AutoCal™ on Δ1.5°C temperature change, 11 hours, and external calibration
Weighing Units Gram, Milligram, Kilogram, Carat, Ounce, Ounce Troy, Pound, Pennyweight, Grain, Newton, Momme, Mesghal, Hong Kong Tael, Singapore Tael, Taiwan Tael, Tical, Tola, Baht, 3 Custom Units
Application Modes Weighing, Percent Weighing, Parts Counting, Check Weighing, Dynamic/Animal Weighing, Filling, Totalization, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC
Communication RS232, USB
Display Type Full-color VGA graphic display, 4-wire resistive touch screen
Display Size 5.7 in / 145 mm (diagonal)
Display Housing Dimensions (WxHxD) 7.7 x 3.5 x 6.0 in / 195 x 90 x 154 mm
Base Housing Dimensions (WxHxD) 9.1 x 13.8 x 15.5 in / 230 x 350 x 393 mm
Leveling Adjustment Front-mounted level bubble with illumination / QuadraStance adjustable leveling feet
Tare Range Full capacity by subtraction
Operating Temperature Range 50°F (10°C) to 86°F (30°C)
Operating Humidity Range 15% to 80% at 87.8°F (31°C)
Storage Conditions -14°F (-10°C) to 140°F (60°C) at 10% to 90% relative humidity, non-condensing
Power Requirements AC adapter input: 100-240 VAC 0.6A 50-60 Hz
Shipping Dimensions 21 x 15 x 21 in / 55 x 38.5 x 55.1 cm
Net Weight 15.2 lb / 6.9 kg
Shipping Weight 21.1 lb / 9.6 kg





FOR INTERESTED BUYERS, PLEASE CALL OR TEXT 09065520730

OR YOU MAY EMAIL YOUR QUESTIONS/REQUEST FOR QUOTATIONS/ CLARIFICATIONS AT:

crisedwinbonalos@yahoo.com or brick_bonalos@artechscientific.com

NOTE: KINDLY INCLUDE YOUR NAME, COMPANY NAME, ADDRESS, CONTACT DETAILS, AND YOUR CONCERN
