Multi-function Thermo Anemometer CUP speed air Weather meter
view images
Ad Information
Price :
Classification :
Condition :
Category :
Subcategory :
:
Date Posted :
Location :
Ad Description
| Payment: | BDO, BPI, GCASH, Smart Money |
| Shipping: | Meet-up/Pickup |
Product Description:

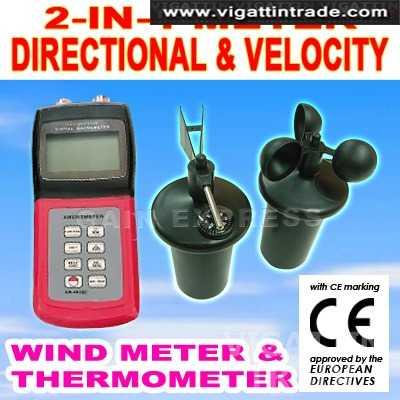

Multi function® Thermo ANEMOMETER WITH CUP SPEED AIR
WIND VINE DIRECTION Speed velocity
AM-4836C anemometer and even more enhance to bring you our newest portable anemometer weather station tool. A Directional Speed thru the used of directional sensor probe had been added to the meter.This directional sensor probe can provide a wind direction measuring range of 16 direction with 22.5° resolution. Plus, the wind vane of AM-4836V has been replaced with 3-cup type sensor velocity probethat measures the velocity of wind. This type of sensor is intended for general long-term maintenance free operation and is a freestanding device for measuring air velocity when mounted. These two detachable probes that has been added are equipped with sensitive sensors that even the lightest breeze can be detected. This device is extremely accurate at measuring wind levels and direction, as well as temperature. Its advanced technology measure the Air Flow, Air Direction, and Air Velocity like any anemometer along with calculating the Beaufort Scale and estimating the Wave Height based on the wind measurement. Probes are equipped with hole for mounting for optimal stability and more accurate results. Just a single push of a button and it can display different unit of measurements instantly. The meter is also capable of Holding, Saving, Retrieving and Deleting 24 groups of memorized data. It uses LSI Microsprocessor advanced microprocessor technology guarantees the highest level of accuracy over the entire temperature range.
Usage & Applications: A precision instrument that has a variety of practical applications including data collections for weather analysis, weather forecast, collection of the weather datum for outdoor busywork, navigation, marine applications, environment monitor for ventilation systems & ducts, installation, data collection for boiler, refrigeration industry, fire department, for outdoor people such as sailors, trekkers, para gliders, skiers, golfers, balloonists, hang gliders, windsurfers, weather enthusiast, lovers of kiteflying, kite-surfing, paragliding, environment monitor, and many others navigation measurement.
Standardizations:
Measurement units & parameters
*Air Velocity: m/s, km/h, ft/min, knots *Air Flow:*CMM (m³/min) *CFM (ft³/min) *Beaufort Scale: Force *Wave Height: m *Wind Direction: ° from the North direction *Air Temperature: °C & °F
Range Specifications
Range Resolution Accuracy
AIR VELOCITY
m/s (meter per sec) 0.40 - 45.0 m/s 0.1 m/s ± (2% + 0.1 m/s)
Km/h (kilometers per sec 1.4 -162.0 km/hr 0.1 km/hr ± (2% + 0.1 km/hr)
ft/min (feet per minute) 80 - 8860 ft/min 0.1 ft/min ± (2% + 0.1 ft/min)
Knots (nautical MPH) 0.8 - 88.0 knots 0.1 knots ± (2% + 0.1 knots)
AIR FLOW
CMM (cubic meters / min) 0 - 9999 m3/min 0.001 TO 1 ±(2% +1m³/min)
CFM (cubic ft/min) 0 - 9999 ft3 /min 0.001 TO 1 ±(2% +1ft³/min)
BEAUFORT SCALE 0 - 12 level 0.1 ± 0.5
Wind Direction (16 directions) 0 - 360° 22.5° ± 22.5°
WAVE HEIGHT 0 - 14 0.1 ± 0.1
AIR TEMPERATURE 32 to 140 °F 0.1 °F 0.9 °C
0 to 60 °C 0.1 °C 0.5 °C
Display: Easy to Read Dual Function 0.5" (13mm) 4-digit LCD with Excellent Blue Backlighting Function
Data hold Maximum Value
Data memorized 24 groups
Custom LSI Microprocessor Circuit
1 reading per second approx. sampling rate
Sensors Air velocity/flow sensor: 3 cup probe with ultra-low friction ball bearing
Direction probe: low friction directional probe with compass
Temperature sensor: NTC-type precision thermistor
Automatic Power off 0-9 minutes set by users
With optional Data Output RS232C serial interface
Operating Temperature is 32°F to 122°F or 0°C to 50°C
Maximum Operating Humidity 80% RH
Power Supply 4 x 1.5V AAA size
Weight 260g (0.57lb) including batteries & probes
Dimensions Main instrument: 156mm x 67mm x 28mm (6.1" x 2.6" x 1.1")
Velocity sensor: 65mm x 65mm x 115mm
Direction sensor: 86mm x 69mm x 115mm
