DOCK TO HDMI CONVERTER FOR

IPAD1

IPAD 2

IPHONES os4.0 up

ipod touch 4.0 up

 1. The HDMI Adapter is compatible with iPad, iPhone 4, iPod touch 4G.
2. Support to transmit the Video and Audio to HD TV or your HDMI device. Not as the VGA adapter, only transmit video.
3. Support 720P HD Digital signal output.
4. Support videos, movies, MTV, Podcast, etc.....
5. The HDMI adapter is a small box, just like the iPad camera connection kit, Very easy to carry to anywhere.
6. Plug and play, No need power supply, No need jailbreak.
7. Do not support the movies that were purchased through iTunes or locked with Apple's Fairplay copy protection scheme, same as the VGA adapter.
8. Do not support to display internet web pages on TV, same as the VGA adapter.

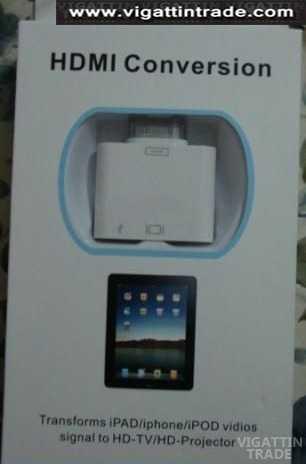

see pictures for Unit

How to use? ---Easily Plugs & Play

Use a HDMI cable(usually included in the accessories of HD TV), connect the HDMI adapter and TV, and then insert the HDMI adpater into iPad or iPhone 4, all the showing transmit to the screen. Now, you can watch HD movies....you can do everything you like.

Parameter:

Apple 30pin source input port:  1
Video device output port:  1
Apple 30pin source port connector:  Apple 30 pin (male)   Video device port connector:  HDMI Type A 19 pin (female)
Video band width (bps):  5.7G  link
Single link range:  Max:1920 x 1200  (For Apple:1024 x 768/720p)
Vertical frequency range:  60Hz
Voltage:  3.3 V         Current:  120mA         Output:  5V
Operation temperature:  0 ~50oC
Storage temperature:  -40 ~ 85oC
Enclosure:  Plastic

Dimension:  53*13*43mm     Net Weight: 18g,
Packing:   80*20*105mm        32g
