Industrial True RMS Waterproof Digital Frequency Capacitance Multimeter
view images
Ad Information
Price :
Classification :
Condition :
Category :
Subcategory :
:
Date Posted :
Location :
Ad Description
| Payment: | BDO, BPI, GCASH, Smart Money |
| Shipping: | Meet-up/Pickup |
Product Description:
Professional True RMS Industrial Digital Multi-meter
with IP67 Protection Grade & Large LCD Display®
Auto Power Off and Low Battery Indication

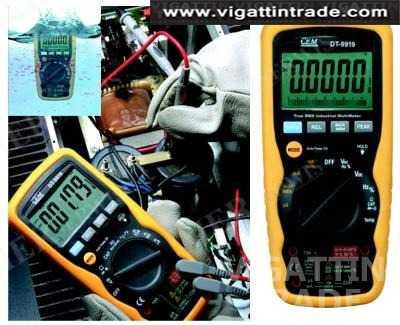

This is a brand new CEM DT-9919 CE certified digital multimeter. This top-of-the-line device offers precision measurement, high resolution 5-digit accuracy, industrial strength double molded plastic housing and IP67 waterproof design. DT-9919 also offers true RMS AC/DC voltage/current, resistance, duty cycle, frequency, capacitance and temperature measurement.
The large LCD display with analog bargraph and back light ensure easy reading under all circumstances. All inputs are protected to EN 610101-1 CATIV 600V / CATIII 1000V. A heavy duty carrying pouch is also included for the protection of the device and your convenience.
Key Specifications/Special Features:
Features:
40,000 counts the large LCD display with analog bargraph and backlit (0.01mV, 0.01μA, 0.01Ω), more easy to read
True RMS measurement
1,000V input protection on all ranges, more safety for measuring
4 to 20mA process loop measurements with % readout
Data hold/MAX/MIN recording mode
Auto power off and indication of low battery, convenience to extend the using terms of battery and remind users to change the low battery
Peak capture mode: >1ms
Wide capacitance range
Relative mode
Specifications:
DC voltage measurement:
Range: 400mV, 4, 40, 400 and 1,000V
Basic accuracy: ±(0.06% + 2d)
Resolution: 0.01mV
AC voltage measurement:
Range: 400mV, 4, 40, 400 and 1,000V
Basic accuracy: ±(1.0% + 3d)
Resolution: 0.1mV
DC current measurement:
Range: 400, 4,000μA, 40, 400mA, 10 and 20A
Basic accuracy: ±(1.0% + 3d)
Resolution: 0.01μA
AC current measurement:
Range: 400, 4,000μA, 40, 400mA, 10 and 20A
Basic accuracy: ±(1.5% + 3d)
Resolution: 0.1μA
Resistance measurement:
Maximum resistance: 40MΩ
Basic accuracy: ±(0.3 % + 4d)
Resolution: 0.01Ω
Capacitance measurement:
Maximum: 40mF
Basic accuracy: ±(3.5% + 10d)
Resolution: 0.001nF
Frequency measurement:
Maximum: 100MHz
Basic accuracy: ±(1.2% + 3d)
Resolution: 0.001Hz
Duty cycle measurement:
Maximum: 99%
Basic accuracy: ±(1.2% + 2d)
Resolution: 0.01%
Temperature measurement:
Maximum: 1,000/1,832°C/F
Basic accuracy: ±(1.0% + 2.5d)
Resolution: 1°
Diodecheck and continuity test:
Diode test: test current of 0.9mA maximum, open circuit voltage 2.8V DC typical
Continuity check: audible signal will sound if the resistance is less than 35Ω (approximately), test current <0.35mA
Domestic sales and dealership and Export/Import inquiries are welcome, please contact the following:
Unit 79, Grace Park Commercial Complex
4th Ave. West bet. J. Teodoro & A. Del Mundo Streets
Grace Park, Kalookan City 01406
Metro-Manila, NCR, Philippines
Tel. Nos.: 63 2 324 1091, 63 2 364 7586, 63 2 367 1712, 63 2 385 3493, 63 2 986 2283
Facsimile: 63 2 365 4686
Mobile No./SMS: 63 920 969 2672
E-mail Address: gadgetsandgears@yahoo.com
Yahoo IM: BrandPhilippines
Skype: BrandPhil1
URL: GADGETSANDGEARS.com
