For Sale or For Swap

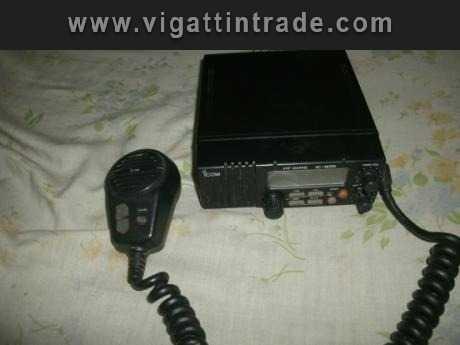

ICOM VHF MARINE BASE RADIO

SPECIFICATIONS
-30General Frequency coverage : Transmit 156 157.5 MHz
Receive 156 163 MHz
Usable channels : All U.S.A., International and
Canadian channels plus 10 weather channels
Mode : 16K0G3E, (16K0G2B when
optional DSC is in use)
Power supply requirement : 13.8 V DC 15%
Current drain : Transmit
(at 13.8 V DC) high power 6.0 A
low power 1.5 A Receive standby 350 mA max. audio output 1.2 A
Frequency stability : 10 ppm
Usable temp. range : 20 C to +60 C; 4 F to +140 F
Dimensions : 140(W) x 55(H) x 155(D) mm
(projections not included) 51 2(W) x 25 32(H) x 63 32(D) in
Weight : 1.0 kg; 2.2 lb

Transmitter
Output power : High 25 W Low 1 W
Modulation system : Variable reactance phase
modulation
Max. frequency deviation : 5.0 kHz
Spurious emissions : Less than 70 dB
Microphone impedance : 600
Receiver
Receive system : Double conversion
superheterodyne
Intermediate frequencies : 1st 21.8 MHz 2nd 455 kHz
Sensitivity : 0.22 V (typical) for 12 dB SINAD
Squelch sensitivity : 0.18 V at threshold
Adjacent channel : More than 70 dB
selectivity
Spurious reponse : More than 70 dB
rejection
Intermodulation rejection : More than 70 dB
Audio output power : 3.5 W at 10% distortion
Audio output impedance :



good condition
no deffects

for those interested call or text me..


Meetups:
-Sm fairview
-Fairview Center Mall
-Pearl Drive fairview
-Puregold dona carmen
