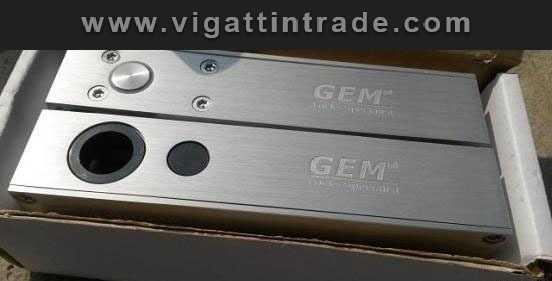

GEM EB300 Surface Mount Electric Drop Bolt Lock

5,000

Electric Dropbolt Locks are the most common locks which compatible with virtually any access control system without additional optional brackets and they are available in failsafe and fail-security modes. Fully concealed mounting feature enhanced aesthetic appearance.

Fail-Safe Version (Power to Lock)
Power Input: 12 V DC
Voltage Tolerance: 10%
Current Draw: Pull in: 0.9A, Holding: 0.3A@12V DC at temperature 20
Door Position status output (Reed rated 0.25A at 30VDC) indicates door opened or closed status.
Tested to 500000 cycles.
Auto-relocking Time Delay : 0, 3 ,6 ,9seconds

EB-300 is specially designed for double acting doors. It also can be installed in in-swinging or out-swinging doors
