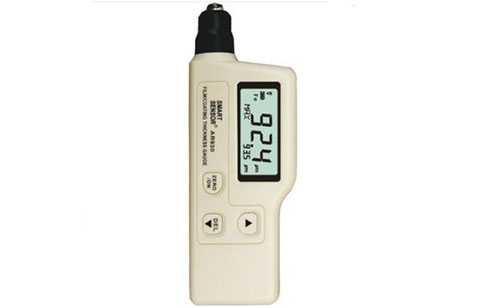

Film / Coating Thickness Gauge Smart Sensor Thickness Meter Testing
view images
Ad Information
Price :
Classification :
Condition :
Category :
Subcategory :
Date Posted :
Location :
Ad Description
VIG IT now! CLICK ME
- This portable product adopts magnetic induction technique for measurement.
- The compact design perform fast,precise and non-destructive digital coating measurement and plating on steel magnetic conductor.
- It is widely used on manufacturing, workshop, chemistry or quality control fields.
Features:
Specification:
Technical parameter :
Technical specification :
- LCD display measurement value and status.
- Using Hi- sensibility sensor for precise measurement.
- 0 point, 2 point and basic, three different calibration
- methods to make it easy to process the system quickcalibration.
- Measure mode: Single, continually and difference .
- Data record, recall and delete function.
- Data analysis: Average, Maximum, Minimum, standard deviation, and measure times.
- Beep sounds indication.
- Metric / Imperic unit selection.
- Low Battery indication.
- Auto power off .
- LCD backlight .
- Simple, compact structure and portable design.
- Range: 0~1800µm
- Resolution: 0.1um/1µm
- Accuracy: ±(3%H+1)
- Condition of Objective material:
- Suitable for measure non-magnetic coating on magnetic conductor base material.
- The minimum curvature radius;Convex: 2mm, Convex: 2, Concave=11, Concave: 11mm
- Minimum Sample diameter: 12mm
- Minimum Substrate thickness : 0.5mm
- LCD display
- Power supply
- Operation current
- Battery life
- Auto power off
- LCD backlight function
- Operation temperature
- Operation humidity
- Low battery indication
- Product size
- 3 1/2 display
- 9V Alkaline battery
- About 14mA
- Continuously 20 hour .
- 1 minute
- 7 second.
- 0~40
- 10~95% RH
- 7.0V ± 0.2V
- 67x 30x 175mm
- 1 x Digital film coating thickness gauge
- 1 x 9V battery
- 1 x Instruction Manual
- 6 x Standard sheet gauge
- 1 x Iron base material for calibration
- 1 x Packing Box
