PRODUCT DESCRIPTION

EPE-4818 is a small and compact standalone product. With the
Power over Ethernet function, it can easily extend the wired
connection distance through the Ethernet cable which avoid the
long power line which might bring dangerous and incident. EPE-
4818 PoE is compliant with 802.3af PoE solution, it offers
48V/0.375A power supply with standard pin definition of Ethernet
cable. Pin#1,2,3 and 6 with data transmission; pin # 4,5,7 and 8
with power enabled to device.
The EPE-4818 PoE generates safe power over category 5
cabling. By sending 48V, Ethernet terminals such as wireless LAN
access point, IP phone, and web camera are powered remotely.
It is especially design for outdoor networking facility and low port
density installations.

PRODUCT ID & COSMETIC

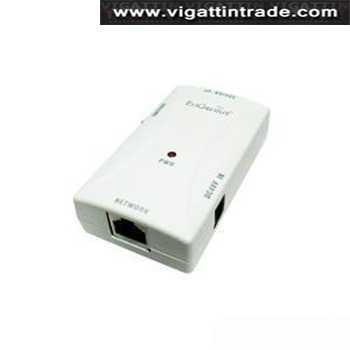

Brick type mechanical design with power indicator (Red LED).
Dimension: 82 x 46 x 21mm

RELIABILITY

20,000 hours

ACCESSORIES AND SUB-SYSTEM

AC cord (USA/Europe/Japan plus are available)

OPERATION ENVIRONMENT

1. Operation temperature: 0°C~ +70°C
2. Storage temperature: -40°C~ +80°C
3. Humidity: 5% ~ 95% typical
