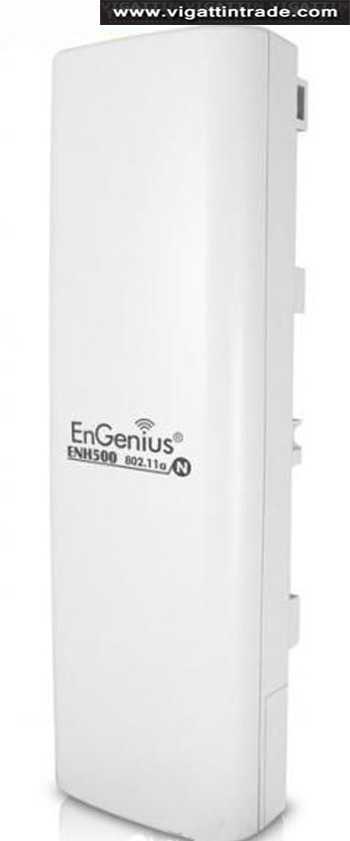

ENH500 is a high-speed long-range outdoor 802.11n wireless Access Point/bridge that operates on 5GHz band only. It complies with IEEE802.11 a/n standard featuring MIMO antenna design with wireless data rate up to 300Mbps.

The ENH500 Long-Range Wireless-N Outdoor Client Bridge/Access Point provides a 5GHz 802.11a/n wireless network infrastructure which avoids interference from 2.4GHz signals to deliver a more stable connection for applications such as streaming video from IP video cameras. Utilizing the integrated internal 13dBi antenna and a high power output of up to 600mW, the ENH500 delivers higher data throughput across the extended range which also makes it a perfect CPE for wireless Internet Service Provider.

ENH500 is equipped with robust security feature set includes the support 64/128/256-bit WEP encryption, WPA/WPA2 Personal and Enterprise encryption, 802.1x authentication, hidden SSID and MAC address filtering. Together with multiple operation modes, the ENH500 is the best solution to build a high-speed, stable and highly secure outdoor wireless link between buildings or connecting outdoor IP security cameras to the office.



SPECIFICATIONS:

Hardware Specifications

MCU: Atheros AR7240
RF: Atheros AR9280
Memory: 32 MB
Flash: 8 MB
Physical Interface: 10/100 Fast Ethernet port x 2
One Reset button
LED’s Status:
Power (Status)
LAN1 (PoE 10/100Mbps) /LAN2 (10/100Mbps)
WLAN (Wireless is up)
3 x Link Quality (Client Bridge mode)

Power requirements:
Active Ethernet: (Power over Ethernet) Proprietary PoE design
Power Adapter: 24VAC / 0.6A



RF SPECIFICATIONS:

Wireless standard

IEEE802.11 a/n
Frequency Band: 5.18 ~ 5.825GHz (a/n)
Modulation Technologies: IEEE 802.11b: DBQSK, DQPSK, CCK
IEEE 802.11a: BQSK, QPSK, 16-QAM, 64-QAM
IEEE 802.11n: BQSK, QPSK, 16-QAM, 64-QAM
Operating Channels:
24 channels

Transmit/Recieve Power

	Channel	Tx Avg. Power Optimal (dBm)	Rx Sensitivity Optimal (dBm)
802.11a (5.18 ~ 5.825GHz)	6Mbps	28	-95
	9Mbps	28	-92
	12Mbps	28	-89
	18Mbps	28	-85
	24Mbps	28	-81
	36Mbps	26	-79
	48Mbps	24	-76
	54Mbps	23	-75
802.11n(5.18 ~ 5.825GHz)	MCS0 / MCS8	28	-94
	MCS1 / MCS9	28	-92
	MCS2 / MCS10	26	-88
	MCS3 / MCS11	26	-85
	MCS4 / MCS12	25	-80
	MCS5 / MCS13	24	-79
	MCS6 / MCS14	24	-74
	MCS7 / MCS15	23	-73

Antenna: Internal Antenna x 2
Antenna gain: 13 dBi
Frequency Band Range: 5.18 ~ 5.825GHz
Horizontal Beam width: 60°
Vertical Beam width: 15°
Antenna Polarity: Dual-Polarized: Vertical/Horinzontal
This product does not include an external antenna connector.



SOFTWARE FEATURES:

Topology: Infrastructure
Protocol: IEEE802.3, 802.3U, 802.11 a/n (5GHz)
Operation mode: Client Bridge/Access Point/WDS bridge/Client Router
Service: DHCP server/client
VPN: VPN Pass-through
Networking: PPPoE, PPTP
Narrow bandwidth (selectable 20MHz/40MHz )



MANAGEMENT:

Firmware upgrade: Reset & Backup, Ping & Trace Route
MIB: MIB I, MIB II(RFC1213), Private MIB
SNMP: SNMP v1, v2c
Security:
WEP Encryption-64/128/152 bit
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
802.1x Authenticator
Hide SSID in beacons
MAC address filtering, up to 50 field
Wireless STA (Client) connected list
QoS: WMM (Wi-Fi Multimedia)



ENVIRONMENT & PHYSICAL:

Temperature Range
Operating: -20°C to 70°C (-4°F to 158°F)
Storage: -30°C to 80°C (-22°F to 176°F)
Humidity (non-condensing): 0%?90% typical
Dimensions: Length: 10.24” (260mm) x Width: 3.31” (84mm) x Height: 2.17” (55mm)
Weight: 0.9 Ib
Certifications: FCC, CE, IC
