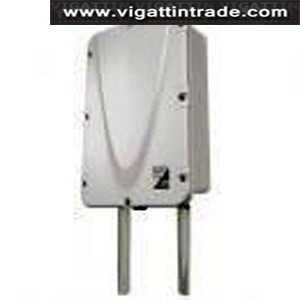

The Enterprise-class ENH210EXT is a high-powered, long-range 2.4GHz Wireless-N Outdoor Access Pointdelivering data at up to 300Mbps. The ENH210EXT provides outdoor wireless network access for campus environments or for connecting other buildings to a company network. It’s ideal for small-to-medium sized companies that wish to provide outdoor access to the company network to their employees or to provide network and/or Internet connectivity via a company’s existing broadband connection. It’s an ideal solution for expanded the reach of an existing network beyond the walls of a building.



Its high 800mW transmit power and high receive sensitivity make it a robust solution for extending company networks. The ENH210EXT has been engineered to withstand harsh outdoor conditions and has an IP rating of 67 and a UV coating to resist prolonged exposure to the sun. The AP also includes two Gigabit Ethernet ports, one for connecting back to the LAN network and the other for a connected device like a surveillance camera.



The ENH210EXT includes EnGenius Zone Controller Access Point Management software that provides a robust suite of tools for IT managers, installers and network administrators who deploy, manage and maintain wireless networks. With Zone Controller, EnGenius Wireless Indoor and Outdoor Access Points and Client Bridges can be configured, controlled and monitored from one central location.



Compatible with EnGenius’ comprehensive family of versatile, long-range Indoor and Outdoor Wireless Access Points, Client Bridges, AP routers, Zone Controller is SNMP (v1 and v2) compliant and provides IT administrators with real-time information to ease the deployment, configuration and management of EnGenius wireless networking solutions in complex networking environments.



Unlike ordinary outdoor APs, the ENH210EXT can be used in a number of configurations and support connectivity to and from other outdoor client bridges (ENH210) in multiple-building campus deployments. The ENH210EXT also can provide wireless connectivity to 3 times as many roaming clients within its range of operation.



Differentiators:



• High 800mW transmit power for long range coverage
• Up to 300Mbps data rate compliant with 802.11n standard; Backward compatible with 802.11b/g
• Support EnGenius Zone Controller AP management software
• Connects to 3 times as many client devices than other APs
• Two Gigabit Ethernet (10/100/1000Mbps) Ports
• Bandwidth management on selected client devices/computers
• WPA/WPA2 Enterprise-level encryption, 802.1x support, MAC address filtering
• 8 SSID-VLAN binding for segregating network access based on bandwidth demand or usage rights
• IEEE 802.3af PoE (Power-over-Ethernet) compliant
• Robust IP67 rated waterproof, dustproof housing designed for harsh outdoor deployments
• Includes PoE injector, pole/wall mount kit, twin 5dBi antennas, Ethernet cable surge protection function
• Can be deployed in a number of different configurations – Wireless Access Point, Client Bridge, WDS Bridge, WDS Access Point-to-WDS Station



Key Features / Benefits



• High 800mW Transmit Power

o For longer range performance than ordinary outdoor APs

o Ideal for Point-to-Multipoint wireless deployments



• Up To 300 Mbps Data Rate

o Backward compatible with IEEE802.11b/g standard

o Maximum data rate of up to 300Mbps



• Support EnGenius ZoneController AP Management Software

o Simplified deployment process

o Easy AP management and configuration from one central location



• Multiple Wireless Network Names (SSIDs)

o Broadcasts up to eight (8) SSIDs

o Permits different levels of network access (SSID-to-VLAN Binding)

o Manage user bandwidth



• Supports Latest Security Standards

o WPA/WPA2 Personal (WPA-PSK using TKIP or AES)

o WPA/WPA2 Enterprise (WPA-EAP using TKIP)

o 802.1x Authenticator

o Ability to hide SSIDs in beacons

o MAC Address Filtering



• Supports standard IEEE 802.3af Power-over-Ethernet Technology

o With included PoE injector can be deployed in areas where power outlets may not be easily accessible



• IP67 Rated Housing & Waterproof Cable Accessory Kit

o Water & dust proof IP67 rated housing designed for harsh outdoor environments

o Prevents moisture from getting into the device through cables and connector holes



• Includes High-Gain N-type Antennas & User-Friendly Installation Kit

o Includes two 5 dBi antenna with N-type connector

o PoE kit includes PoE injector and power adapter

o Mast mount kit includes strap; wall mount kit includes screws package



HARDWARE SPECIFICATIONS



MCU

Atheros AR7242



RF

Atheros AR9283



Memory

64 MB



Flash

16 MB



Physical Interface

10/100/1000 Gigabit Ethernet PoE (Power-over-Ethernet) port x 1

10/100/1000 Gigabit Ethernet port x 1

Reset button x 1



LED Indicators

Power Status

LAN1 (10/100/1000Mbps)

LAN2 (10/100/1000Mbps)

WLAN (Wireless is enabled)

3x Link Quality (Client Bridge mode)



Antenna

External N-type connectors x 2;

Omni Directional Antenna x 2



Power requirement

Active Ethernet (Power-over-Ethernet)

IEEE 802.3af/at support

Power Adapter 48V / 0.375A



RF SPECIFICATIONS

Wireless standard IEEE802.11 b/g/n

Frequency 2.412 ~ 2.472GH (b/g/n)

Modulation Technology

IEEE 802.11b: DBQSK, DQPSK, CCK

IEEE 802.11g: BQSK, QPSK, 16-QAM, 64-QAM

IEEE 802.11n: BQSK, QPSK, 16-QAM, 64-QAM



Operating Channels

11 channels



Transmit Power

802.11b(2.412 ~ 2.472GHz)

29 dBm @ 1Mbps

29 dBm @ 2Mbps

29 dBm @ 5.5Mbps

29 dBm @ 11Mbps



802.11g(2.412 ~ 2.472GHz)

29 dBm @ 6Mbps

29 dBm @ 9Mbps

29 dBm @ 12Mbps

29 dBm @ 18Mbps

27 dBm @ 24Mbps

27 dBm @ 36Mbps

26 dBm @ 48Mbps

25 dBm @ 54Mbps



802.11n(2.412 ~ 2.472GHz)

29 dBm @ MCS0/MCS8

29 dBm @ MCS1/MCS9

29 dBm @ MCS2/MCS10

29 dBm @ MCS3/MCS11

29 dBm @ MCS4/MCS12

25 dBm @ MCS5/MCS13

24 dBm @ MCS6/MCS14

23 dBm @ MCS7/MCS15



Receiver Sensitivity

802.11b(2.412 ~ 2.472GHz)

-97 dBm @ 1Mbps

-95 dBm @ 2Mbps

-92 dBm @ 5.5Mbps

-89 dBm @ 11Mbps



802.11g(2.412 ~ 2.472GHz)

-96 dBm @ 6Mbps

-93 dBm @ 9Mbps

-89 dBm @ 12Mbps

-85 dBm @ 18Mbps

-81 dBm @ 24Mbps

-79 dBm @ 36Mbps

-76 dBm @ 48Mbps

-75 dBm @ 54Mbps



802.11n(2.412~2.472 GHz)

-95 dBm @ MCS0/MCS8

-92 dBm @ MCS1/MCS9

-87 dBm @ MCS2/MCS10

-85 dBm @ MCS3/MCS11

-80 dBm @ MCS4/MCS12

-79 dBm @ MCS5/MCS13

-74 dBm @ MCS6/MCS14

-73 dBm @ MCS7/MCS15



SOFTWARE SPECIFICATIONS



Topology

Infrastructure, ad hoc (WDS bridge)



Protocol

IEEE802.11 b/g/n (2.4GHz) 802.3, 802.3u, 802.3ab, 802.1D



Operation Mode

Access Point / Client Bridge / Client Router / WDS



LAN

DHCP server/client



VPN

VPN Pass-through



Networking

PPPoE,

PPTP, DHCP client, spanning tree,

Channel bandwidth



Security

WEP Encryption-64/128/152 bit

WPA/WPA2 Personal (WPA-PSK using TKIP or AES)

WPA/WPA2 Enterprise (WPA-EAP using TKIP)

802.1x Authenticator

Hide SSID in beacons

MAC address filtering, up to 50 field



Management

Interface: Web-based configuration

Firmware upgrade via browser

Administrator password changeable

Reboot; Reboot to factory default

System monitoring: Status in hand, statistics and event log

Configuration backup, configuration retore

Ping & Trace Route,

Remote management: SNMP:v1, v2c; MIB I, MIB II(RFC1213), Private

MIB

Time setting: Manual; Auto: NTP



Certifications

FCC 15B, FCC 15C, IC, CSA



ENVIRONMENT & PHYSICAL



Temperature Range

Operation: -4°F ~ 158°F (-20°C ~ 70°C)

Storage: -22°F ~176°F (-30°C ~ 80°C)



Humidity (non-condensing)

0%?90 % typical



Contents of Package

ENH210EXT x 1

PoE Injector (EPE-48GR)

Power Adaptor

5dBi Omni Antenna x 2

CD with User’s Manual

QIG

Mounting Set

Special screw set



Dimensions

12.2” (L) x 9.0” (W) x 4.21” (H)



Weight 3 lbs
