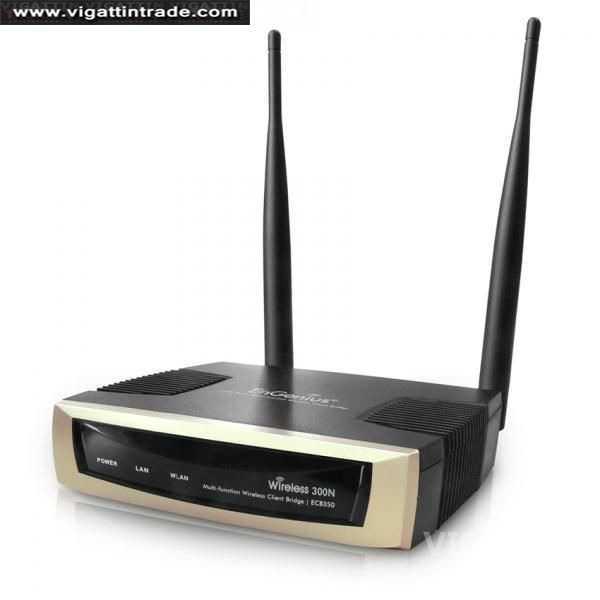

The EnGenius ECB300 is a 2.4GHz Wireless-N Indoor Access Point / Client Bridge / WDS / Repeater that features high transmit power (up to 29 dBm) for long range Wi-Fi coverage, wireless speeds up to 300Mbps and a Fast Ethernet port for connecting to a switch or router.

This high-powered AP/CB is designed to expand the number of users and devices that can access an existing wireless network within large or multi-story buildings or expansive, client-intensive facilities like hotels, resorts, hospitals, office buildings, universities or other multi-building campus facilities that need to offer employees, guests, staff or students access to network resources like printers, content or the Internet.

The ECB300 can be configured to operate in several modes – as a Wireless-N Access Point, Client Bridge, WDS Access Point, WDS Bridge, Repeater, or AP Router.

The ECB300’s two detachable/upgradeable MIMO (Multiple In/Multiple Out) 5dBi antenna array results in enhanced receive sensitivity and connectivity to access points and wireless clients even in areas where connections have been previously challenging or non-existent.

For deployments on ceilings or in crawlspaces where power outlets may be scarce, the ECB300 is also PoE (Power-over-Ethernet) capable when used with a PoE injector, like the 802.3af compliant EnGenius EPE5818af.

The ECB300 also features industry standard wireless network encryption settings, like WEP, and WPA/WPA2, to protect the network from unauthorized access. For small-to-medium-sized office or larger corporate deployments the ECB300 also can be configured with MAC address filtering so only known and MAC address recognized client devices can access the network and unauthorized client devices can be isolated.

The ECB300 includes EZ Controller Access Point Management software that provides a robust suite of tools for IT managers, installers and network administrators who deploy, manage and maintain wireless networks. With EZ Controller, EnGenius Wireless Indoor and Outdoor Access Points and Client Bridges can be configured, controlled and monitored from one central location.



Key Features / Benefits

• High-power, Long-range Wireless-N

o Up to 29dBm RF Tx power provides 2x greater signal coverage compared to other competitive offerings

• Wireless-N 6x Speed Over Legacy 802.11g Access Points

o Compliant with 802.11b/g/n standard and MIMO delivering up to 300Mbps throughput over wireless for greater overall performance and connectivity

• Multiple Operation Modes
  • Wireless-N Access Point, Client Bridge, WDS Access Point, WDS Bridge, Repeater, or AP Router

• Industry standard encryption
  • WEP, WPA/WPA2, MAC address filtering

• SSID-to-VLAN Mapping

o Supports 802.1q mapping of SSIDs and up to four VLANs

• IEEE802.3af PoE Compliant

o Supports Power-over-Ethernet (IEEE 802.3af) and enables deployment in ceilings and other areas where power outlets may not be available. Optional (purchased separately):Recommended PoE Injector: EnGenius EPE5818af (802.3af compliant)

• Detachable Antennas

o 2x detachable omni-directional 5dBi antennas



TECHNICAL SPECIFICATIONS

HARDWARE SPECIFICATIONS

MCU/RF RTL8196C + RTL8192CE

Memory 32MB

Flash 4MB

Physical Interface LAN: 1 x 10/100 Fast Ethernet (RJ-45) port

Reset Button

Power Jack

LEDs Status Power/Status

LAN (10/100Mpbs)

WLAN (Wireless connection up to 300Mbps)

Power Supply: 90 to 240 VDC ± 10%, 50/60 Hz (Depends on different countries)

Active Ethernet (Power over Ethernet, IEEE802.3af) 48 VDC/0.375A

Device: 12V/1A

RF Specifications

Wireless Standard IEEE802.11 b/g/n

Frequency 2.400 ~ 2.484GHz (b/g/n)

Modulation Technologies OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK

Operating Channels 11 channels



Transmit Power

802.11b(2.412 ~ 2.472 GHz)

29 dBm @ 1Mbps

29 dBm @ 2Mpbs

29 dBm @ 5.5Mbps

29 dBm @ 11Mbps



802.11g(2.412 ~ 2.472 GHz)

29 dBm @ 6Mbps

29 dBm @ 9Mbps

28 dBm @ 12Mbps

28 dBm @ 18Mbps

24 dBm @ 24Mbps

24 dBm @ 36Mbps

23 dBm @ 48Mbps

23 dBm @ 54Mbps



802.11n(2.412 ~ 2.472 GHz)

26 dBm @ MCS0/MCS8

26 dBm @ MCS1/MCS9

25 dBm @ MCS2/MCS10

25 dBm @ MCS3/MCS11

24 dBm @ MCS4/MCS12

24 dBm @ MCS5/MCS13

23 dBm @ MCS6/MCS14

23 dBm @ MCS7/MCS15



Receiver Sensitivity

802.11b (2.412 ~ 2.472 GHz) best ≤ -98 dBm

802.11g (2.412 ~ 2.472 GHz) best ≤ -93 dBm

802.11n (2.412 ~ 2.472 GHz) best ≤ -93 dBm



Antenna 2x external 5dBi SMA antennas (Diversity support)



SOFTWARE SPECIFICATIONS

Topology Infrastructure/Ad-Hoc

Operation Mode Access Point/Client Bridge/Universal Repeater/WDS Bridge/WDS AP/AP Router

Multiple BSSID Supports up to 4 BSSIDs

LAN IP (check validity and DHCP server IP range)

DHCP Server DHCP range, lease time, client list

VLANs Supports 802.1q (up to 4 VLANs)

SSID-to-VLAN mapping

Spanning Tree Supports 802.1d Spanning Tree Protocol

Wireless Wireless mode: 11b/11g/11n

Channel selection (setting varies by country)

Channel bandwidth (Auto, 20MHz, 40MHz)

Transmission rate: 11n only, 11b/g/n mix, 11b only, 11b/g, 11g only

VPN VPN pass-through (PPTP, L2TP, IPSEC)

QoS WMM

WPS Software only

SECURITY WEP Encryption - 64/128 bit

WPA Personal (WPA-PSK using TKIP or AES)

WPA Enterprise (WPA-EAP using TKIP)

802.1x Authenticator

SSID broadcast enable/disable

WLAN MAC Address Filter

WLAN L2 isolation (AP mode)

Wireless STA (Client) connected list (Idle/Connection Time, Pkt statistics)



MANAGEMENT

Tx Power Control Adjust transmit power by dBm

Configuration Web-based configuration (HTTP)/Telnet

Telnet Server CLI

Firmware Upgrade Upgrade firmware via web browser

Administrator Setting Administrator Username & Password change

Reset Setting Reboot (press 1 second). Reset to Factory Default (press 10 second)

System Monitoring Status Statistic and Event log

SNMP V1 , V2c

MIB MIB I , MIB II, and Private MIB

Traffic Measurement Per interface

Auto-channel Selection Automatically selecting least congested channel

Bandwidth Measurement IP range and bandwidth management

Backup & Restore Save & restore settings through Web interface

Diagnosis IP pinging statistics

AP Detection Scanning for available EnGenius APs



ENVIRONMENTAL & PHYSICAL SPECIFICATIONS

Temperature Range Operating: 0 to 50° C (32° to 122° F)

Storage: -20 to 60° C (-4° to 140° F)

Humidity (non-condensing) Operating: 90% or less

Storage: 90% of less

Dimensions: L: 5.32”(135mm), W: 4.14”(105mm), H: 1.18”(30mm)

Weight: 0.77 lb. (280g)

Certifications: FCC, CE, IC

• ECB300 Indoor Access Point / Client Bridge
• 12V/1A Power Adapter
• Quick Installation Guide
• CD with User’s Manual in pdf
• Ethernet Cable
