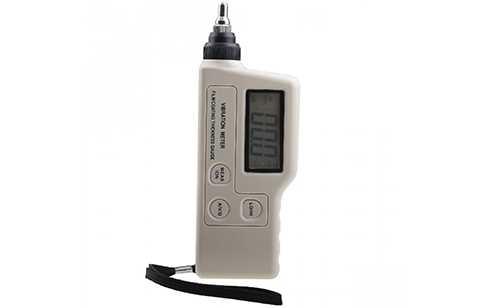

Digital Vibration Meter Tester Vibrometer Analyzer Acceleration Velocity Gauge

preview
view images

Ad Information

Price :
Classification :
Condition :
Category :
Subcategory :
:
Date Posted :
Location :

Ad Description

VIG IT now! Click here

  •  Simple to use, the structure is compact, portable for carrying with measurement
  • Visually display measurement value and state
  • AccelerationVelocity and Displacement measurement
  • Different vibration frequency selection
  • High sensitivity probe for accurate measurement
  • Provide long and short probe head, each one is suitable for different situation measurement
  • Equipped with AC signal output interface
  • Low power indication
  • Auto Power-off
  • LCD Backlight



Specifications





  • Vibration pickup: Piezoelectric ceramic accelerometer (shear-type)

  • Measurement Range

    • Acceleration: 0.1 ~ 199.9 m/s2 peak

    • Velocity: 0.1 ~ 199.9 mm/s rms

    • Displacement: 0.001 ~ 1.9999 mm p~p (Velocity and displacement range is limited by acceleration 199.9 m/s2

  • Measurement Accuracy: ±5% ± 2 digits

  • Measurement Frequency Range

    • Acceleration: 10 Hz ~ 1 kHz (LO), 1 kHz ~ 15 kHz (HI)

    • Velocity: 10 Hz ~ 1 kHz (LO),

    • Displacement: 10 Hz ~ 1 kHz (LO),

  • Displays update cycle: 1 second

  • LCD display: 3 ½ digits display

  • Single Output:

    • AC output 2 V peak (display full scale)

    • Load impedance 10 kΩ or more earphones can be connected

  • Power Supply: 9V Alkaline Battery (included)

  • Static current: ≤20 μA

  • Operating current: ≤25 mA

  • Battery Life: 20 hours continuous use

  • Auto Power-off: Turns off automatically in 60 seconds

  • LCD Backlight: 7 seconds

  • Operating Temperature Range: 0 ~ 40 °C (32 ~ 104 °F)

  • Operating Humidity Range: 30 ~ 90% R.H.

  • Low Battery Indication: 6.9 V ± 0.2V

  • Item Dimensions: approx. 67 (L) x 30 (W) x 183 (D) mm (2.64 x 1.18 x 7.2 inch)

  • Item Weight: approx. 182 g (6.42 oz) (battery included)


One Set Included

  • 1 x Vibration Meter
  • 1 x Short Probe Tip (Installed)

  • 1 x Long Probe Tip

  • 1 x 9 V Battery

  • 1 x Instruction Manual
