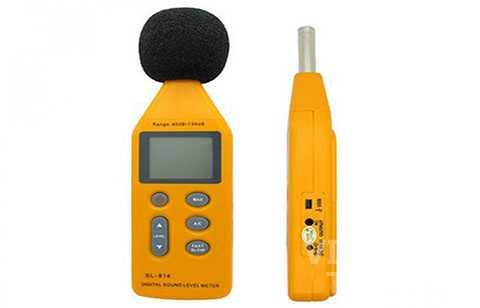

This Digital Sound Level Meter is an instrument to measure Sound Pressure Level in decibels (dB).
It is featured with wide measuring range (40 ~ 130 dB), Bar-Graph Indication, A/C frequency weighting, Fast / Slow response and Maximum Hold function.
It also provides a windscreen to filter-out unwanted signals.
Moreover, it can connect to PC for Data Logging with optional USB cable.
This is a portable, handy instrument for sound quality control in office, home, school and construction site.
It has wide range of applications such as noise pollution studies, research and other industrial use.
Conformed to the IEC 651 Type 2 and ANSI S1.4 Type 2 set standard
Instantaneous Sound Measure Function
Wide Measuring Range: 40 ~ 130 dB
With 2 equivalent weighted sound pressure levels A and C
Fast and Slow dynamic characteristic modes
AC signed output for frequency analyzer level recorder, FFT analyzer and graphic recorder
Equipped with windscreen to filter noise or unwanted signal
Bar graph indication for Sound Level Range
Maximum hold function
Large LCD screen with 4 digits reading
With Tripod mounting on the back of the unit for field use
Software CD and USB Cables with additional US $19.90 / GBP ?13.90 / AUD $23.90 / EUR 15,90 (Optional)

Specifications:

Sound Level: 40 ~ 130 dB with Level selecting button switches
Level 1: 40 ~ 70 dB
Level 2: 60 ~ 90 dB
Level 3: 80 ~ 110 dB
Level 4: 100 ~ 130 dB
Level 5: 40 ~ 130 dB
Accuracy: 2 dB
Frequency Range: 31.5 Hz ~ 8.5 kHz
Linearity Range: 30 dB
Measuring Level: 40 ~ 130 dB(A) (A-weighted decibels), 40 ~ 130 dB(C) (C-weighted decibels)
Frequency Weighting: A, C
LCD display: 4 digits
Display: 0.5 secretary
Resolution: 0.1 dB
Bar graph: 50 dB scale at 1 dB step for monitoring current sound pressure level display period: 50 mS
Over range indication: Under indication less than lower limit of the range
AC output: 0.707 Vrms at Full Scale output impedance approx. 600 ¦¸
Time weighting: Fast / Slow
Microphone: electret condenser microphone
Max: Maximum hold
Power Supply: 9 V (6F22) Battery (not included) or DC 9V 100 mA
Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
Operating Humidity: 10 ~ 70 % R.H.
Storage Temperature: -10 ~ 50 °C (14 ~ 122 °F)
Storage Humidity: 10 ~ 80 % R.H.
Dimensions: approx. 235 (L) x 70 (W) x 30 (H) mm (9.25' x 2.76' x 1.18' inch)
Weight: approx. 380 g (13.4 oz)
