kaya nya i-display ang mga ito sa isang screen na sabay-sabay:



1. electric Current flowing through the wire in Ampere.

2. Voltage measured at the terminal of the battery bank

3. how much energy consumed so far in watt-hour

4. current stored energy in the battery bank in ampere-hour

5. current power being consumed in watts



Measure energy(wh),charge(ah), power(w),current(A) and voltage(V)

Conenctor to use an optional receivr battery for measurement down to 0 V

Accurate & precise 0.01 A cuurrent and 0.01 V voltage resolutions

Measures peak Amps, peak Watts(except for Doc Wattson) and Voltage minimum(sag)

Rugged- handles 50A continuous and 100 A peak at 60V
14a ga., super fine stranded, high temperature, silicone rubber insulated wire
Small & light with a tough plastic case available in several colors

Acts like a wire so doesn't affect model's performance. Precision Alu-Chrom current sensing resistor, with only 0.001 Ohms resistance and circuitry that draws only 7 mA

USes DSP to increase ADC resolution and differential measurement amplifiers to increase noise immunity

Factory calibration store constants in EEPROM to compensate for component tolerances

Powerful in USA to ISO 9001:2000 quality standards



Voltage: 0-60V  0.01V (Resolution)
Current: 0-100 A peak 0.01A (Resolution)
Power: 0-6554 W  0.1W (Resolution)
Power: 0-6554 W  0.1W (Resolution)
Charge: 0-65 Ah  0.001Ah (Resolution)
Energy: 0-6554 wh 0.1 Wh (Resolution)
Measurement Update period: 400mS
Signal Sampling Rate: sample/s
Data Queue Sequence time: 2 seconds
In Circuit Resistance: 0.001 Ohms
Operation Current: 7 mA
Auxiliary Power Voltage: 4.0V -60V
Dimensions( L x W x D ): 84 x 50 x 20mm



I sold 1 pc last April 12, thank you mga ka-vigattintrade!

I accept bulk orders and I am able to deliver at least 5 days just add 500 pesos per piece for the shipping cost. Pero kung gusto nyo maghintay ng 1month, no additional fee.



Stocks just arrived:

Specification :

• Brand new and high quality.
• Measure energy(wh),charge(ah), power(w),current(A) and voltage(V).
• Accurate & precise 0.01 A cuurrent and 0.01 V voltage resolutions.
• Measures peak Amps, peak Watts(except for Doc Wattson) and Voltage minimum(sag).
• Rugged- handles 50A continuous and 100 A peak at 60V.
• 14a ga., super fine stranded, high temperature, silicone rubber insulated wire.
• Small & light with a tough plastic case available in several colors.
• Acts like a wire so doesn't affect model's performance. Precision Alu-Chrom current sensing resistor, with only 0.001 Ohms resistance and circuitry that draws only 7 mA.
• USes DSP to increase ADC resolution and differential measurement amplifiers to increase noise immunity.
• Size:8.3cm x 4.7cm x 2cm - 3.27inch x 1.85inch x 0.79inch

Performance parameters:

• Color:Blue

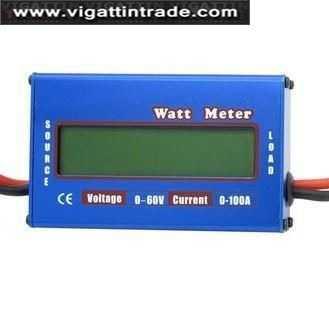

• Name : A(200200)680 – Watt Meter.
• Voltage:(0)V-4V-60V 0.01V (Resolution).
• Current:0-100 A peak 0.01A (Resolution).
• Power:0-6554 W 0.1W (Resolution).
• Charge:0-65 Ah 0.001Ah (Resolution).
• Energy:0-6554 wh 0.1 Wh (Resolution).
• Measurement Update period:400mS.
• Signal Sampling Rate:sample/s.
• Data Queue Sequence time: 2 seconds.
• In Circuit Resistance:0.001 Ohms.
• Operation Current: 7 mA.
• Dimensions( L x W x D ): 84 x 50 x 20mm.

Package Included:

• 1 x Watt Meter
• 1 x User Manual
