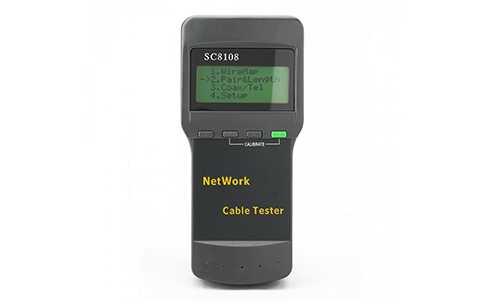

CAT5 RJ45 Network Cable Tester
view images
Ad Information
Price :
Classification :
Condition :
Category :
Subcategory :
:
Date Posted :
Location :
Ad Description
VIG IT now! CLICK ME
- Checks wiring error in 5E, 6E, coaxial and telephone line
- Check open circuit, short circuit, jumper wire, reverse connection or cross-talk interference
- Locates the wiring or connection error
- Measures cable length and determines the distance of open circuit and short circuit
- Dynamically calibrates cable length and makes length measurement as accurate as 97%25
- Simple and easy use, big screen to display test clear
- Portable unit with long battery life (wait-case 50 hours)
- Automatically time-delay shut off
- Measures length and pair with or without far-end recognizer
- Locates cable and there are 8 far-end passive test jacks (ID no.: ID1 - ID 8)
- Far-end recognize with prompting voice
- Self-checking function and automatically compensates any change in battery capacity or ambient temperature
- Single board computer software watchdog design
- LCD : 4 x 16 characters big screen (valid visual field 61.6 x 25.2 mm)
- Type of Tester Cable : STP / UTP twin twisted cable, coaxial cable, telephone line
- Tester Port : Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R). The extra BNC and RJ11 converters are used to measure and check the continuity of coaxial cable and telephone line
- Length Measurement of Twin Twisted Cable: Scope : 1350M (31,200 FT) Display : M or FT
- Length Calibration : User can set calibration factor by himself by a given length cable. The length of calibrating cable is more than 5M.
- Wire Sequence and Locating Cable Error : Check errors such as open circuit, short circuit, reverse connection, cross over or cross-talk interference.
- Locating Cable : Included 1 far-end passive test jack
- Use 4 x AA batteries (Not included)
- Item size : 180 x 80 x 40 mm
- The cable tester has CE-MARK
- 1X Unit
- 1X Far End jack
- 1X English manual
