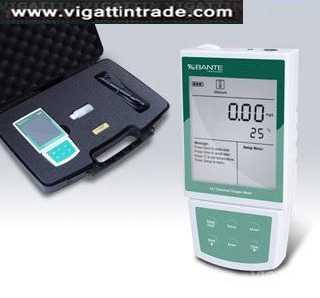

Bante 8 series portable meters uses polarographic electrode to

measures dissolved oxygen in water, it can shows the oxygen

level as % saturation from 0 to 200% or concentration from 0 to

20mg/L.


Automatic Calibration

The meters can be calibrated at one or two points - in air(100%)

and / or with a zero oxygen solution, easy and quick calibration

ensures accurate reading.


Salinity and Barometric Pressure Compensation

Salt  dissolved in solution will be limits oxygen content, Bante 8

series DO meters are capable of compensates the salinity and

barometric pressure after manual input coefficients.

Multi-Measurement Units

The meters can shows various temperature and concentration

units  to meet users requirements. For example:  mg/L and ppm,

kPa and mmHg, Celsius and Fahrenheit.



Automatic Temperature Compensation

DO probe with a globular shape temperature sensor, it can provide

automatic  temperature compensation  to ensure accurate measuring

value.

Hold Function

To keep the latest measurement on the display, after taking a reading

press the HOLD key and the measurement remains on the display,

the user can easily view and record data.

?

Power Monitor

During using, The power chip will continuously monitors  the battery

level, When the battery is running out of power, The battery icon will

disappear from the screen.

?

Message Indicator

Bante 8  series meters have message indicator, it can shows many

helpful messages like an on-screen manual for easy operation.

?



?

Communication Interface and Data Storage

The meters have real-time date/clock stamps, the memory stores up

to 48 data sets. Press the SAVE key to store the current measured

values and  it automatically generates a serial number with time.  All

of stored data can then be sent to a computer via the USB port.



Specifications:
Model: Bante820
Dissolved Oxygen Range: 0.0 to 20.0mg/L(ppm)
Resolution: 0.1mg/L
Dissolved Oxygen Accuracy: ±0.5mg/L
% Saturation of Oxygen: 0.0 to 200.0%
Accuracy: ±10.00%
Temperature Compensation: 0 to 40oC, 32 to 104oF, Automatic
Salinity Correction: 0 to 35g/L
Barometric Pressure Correction: 450 to 850mmHg, 60.0 to 112.5kPa
Calibration Points: 1 or 2 points, 100% in air or 0% in solution
Memory: 48 Data sets with Date/Time stamping
Output: USB Communication Interface
Power Requirements: 9V/800mA Battery
Dimensions: 185(L)×88(W)×32(H)mm
Weight: 300g
