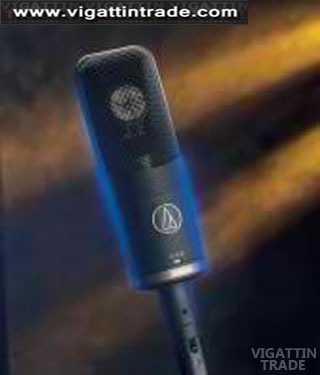

PRODUCT NAME: Audio Technica AT4050 Condenser Microphone PRICE:PHP 31,700.00

PRODUCT INFO:
Meet the studio condenser that captures every nuance. With three switchable polar patterns, the large-diaphragm Audio-Technica AT4050 exhibits a remarkable combination of qualities: high-SPL capability with transparent and airy uppers/mids complemented by rich low-end qualities. Its dual large diaphragms are gold-vaporized and aged for consistent, outstanding performance. A precision-machined, nickel-plated brass acoustic element baffle provides rock-solid element stability and exceptional sensitivity.
Check out audio samples and interior views of the AT4050 and other 40 Series side-address condensers
Ideal for studio use and live sound productions with vocals, piano, strings, drum overheads, guitar amps, and more.
Audio-Technica s AT4050. For performance that legends are made of.




Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and highest quality







Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone







The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use







Three switchable polar patterns: omni, cardioid, figure-of-eight







Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients







State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards







Switchable 80 Hz hi-pass filter and 10 dB pad







Custom shock mount provides superior isolation








SPECIFICATIONS


ELEMENT
Externally-polarized (DC bias) condenser


POLAR PATTERNS
Cardioid,
Omnidirectional,
Figure-of-eight


FREQUENCY RESPONSE
20-18,000 Hz


LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave


OPEN CIRCUIT SENSITIVITY
-36 dB (15.8 mV), re 1V at 1 Pa


IMPEDANCE
100 ohms


MAXIMUM INPUT SOUND LEVEL
149 dB SPL, 1 kHz at 1% T.H.D.;
159 dB SPL, with 10 dB pad (nominal)


NOISE
17 dB


DYNAMIC RANGE (TYPICAL)
132 dB, 1 kHz at Max SPL


SIGNAL-TO-NOISE RATIO
77 dB, 1 kHz at 1 Pa


PHANTOM POWER REQUIREMENTS
48V DC, 4.2 mA typical


SWITCHES
Polar selection;
Flat, roll-off;
10 dB pad (nominal)


WEIGHT
18.0 oz (510 g)


DIMENSIONS
7.40" (188.0 mm) long,
2.10" (53.4 mm) maximum body diameter


OUTPUT CONNECTORS
Integral 3-pin XLRM-type


ACCESSORIES FURNISHED
AT8449 shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case


AUDIO-TECHNICA CASE STYLE
R1








SPECIFICATION GRAPHS


Click on the chart to view the larger image





POLAR PATTERN
CARDIOID





POLAR PATTERN
OMNIDIRECTIONAL





POLAR PATTERN
FIGURE-OF-EIGHT





FREQUENCY RESPONSE
CARDIOID





FREQUENCY RESPONSE
OMNIDIRECTIONAL





FREQUENCY RESPONSE
FIGURE-OF-EIGHT
