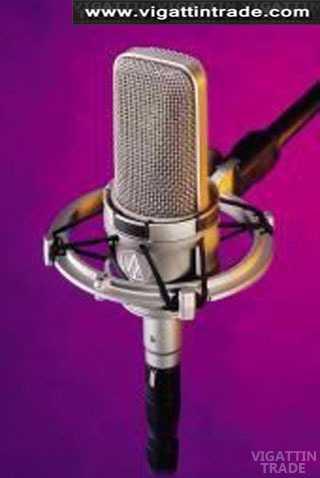

PRODUCT NAME: Audio Technica AT4047 Condenser Microphone PRICE:PHP 32,200.00

PRODUCT INFO:
The rich, warm sound takes you back to the classic F.E.T. studio microphones. But there s nothing remotely old-fashioned about the technology behind that vintage sound. The AT4047/SV studio condenser s dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.
Check out audio samples and interior views of the AT4047/SV and other 40 Series side-address condensers
AT4047/SV. It s another in a venerable line of studio artists dreams come true: the 40 Series, from Audio-Technica.



Designed for critical studio, live sound and broadcast applications







Transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs







Exceptionally low self-noise, wide dynamic range and high SPL capability







Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone







Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity







Vintage silver-matte finish on microphone and shock mount







Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections







State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards







Switchable 80 Hz hi-pass filter and 10 dB pad







Custom shock mount provides superior isolation






SPECIFICATIONS


ELEMENT
Externally-polarized (DC bias) condenser


POLAR PATTERN
Cardioid


FREQUENCY RESPONSE
20-18,000 Hz


LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave


OPEN CIRCUIT SENSITIVITY
-35 dB (17.7 mV) dB re 1V at 1 Pa


IMPEDANCE
250 ohms


MAXIMUM INPUT SOUND LEVEL
149 dB SPL, 1 kHz at 1% T.H.D.;
159 dB SPL, with 10 dB pad (nominal)


NOISE
9 dB SPL


DYNAMIC RANGE (TYPICAL)
140 dB, 1 kHz at Max SPL


SIGNAL-TO-NOISE RATIO
85 dB, 1 kHz at 1 Pa


PHANTOM POWER REQUIREMENTS
48V DC, 3.0 mA typical


SWITCHES
Flat, roll-off;
10 dB pad (nominal)


WEIGHT
14.5 oz (410 g)


DIMENSIONS
6.69" (170.0 mm) long,
2.10" (53.4 mm) maximum body diameter


OUTPUT CONNECTOR
Integral 3-pin XLRM-type


ACCESSORIES FURNISHED
AT8449/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case


AUDIO-TECHNICA CASE STYLE
R1








SPECIFICATION GRAPHS


Click on the chart to view the larger image





POLAR PATTERN





FREQUENCY RESPONSE
