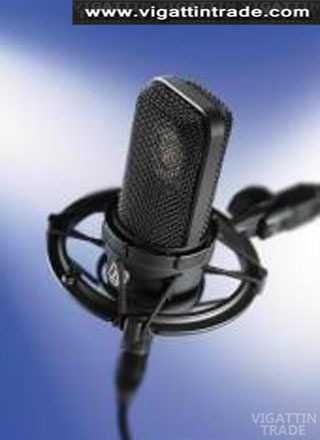

PRODUCT NAME: Audio Technica AT4040 Condenser Microphone PRICE:PHP 18,350.00
PRODUCT INFO:
The AT4040 side-address condenser microphone features an advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics. A marriage of technical precision and artistic inspiration, the AT4040 offers exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility. This ultra-consistent microphone may be used with confidence in a wide variety of studio and live miking applications, even under the stringent demands of digital recording systems. The AT4040 s low-noise circuitry is symmetrical and transformerless, resulting in exceptional transient response and clean output signals for transparent reproduction of even the most troublesome of instruments and sound effects.
Check out audio samples and interior views of the AT4040 and other 40 Series side-address condensers




Technically-advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics







Externally polarized (DC bias) true condenser design







Exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility







Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients







Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity







Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections







State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards







Custom shock mount provides superior isolation







Switchable 80 Hz hi-pass filter and 10 dB pad








SPECIFICATIONS


ELEMENT
Externally-polarized (DC bias) condenser


POLAR PATTERN
Cardioid


FREQUENCY RESPONSE
20-20,000 Hz


LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave


OPEN CIRCUIT SENSITIVITY
-32 dB (25.1 mV) re 1V at 1 Pa


IMPEDANCE
100 ohms


MAXIMUM INPUT SOUND LEVEL
145 dB SPL, 1 kHz at 1% T.H.D.;
155 dB SPL, with 10 dB pad (nominal)


NOISE
12 dB SPL


DYNAMIC RANGE (TYPICAL)
133 dB, 1 kHz at Max SPL


SIGNAL-TO-NOISE RATIO
82 dB, 1 kHz at 1 Pa


PHANTOM POWER REQUIREMENTS
48V DC, 4.2 mA typical


SWITCHES
Flat, roll-off;
10 dB pad (nominal)


WEIGHT
12.7 oz (360 g)


DIMENSIONS
6.69" (170.0 mm) long,
2.10" (53.4 mm) maximum body diameter


OUTPUT CONNECTOR
Integral 3-pin XLRM-type


ACCESSORIES FURNISHED
AT8449 shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case


AUDIO-TECHNICA CASE STYLE
R1








SPECIFICATION GRAPHS


Click on the chart to view the larger image





POLAR PATTERN





FREQUENCY RESPONSE
