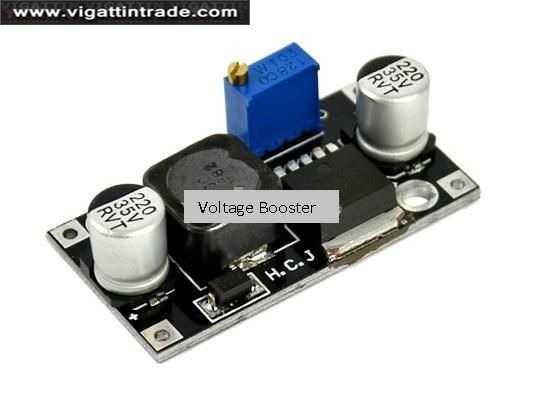

Pwede ito gamitin kung yung output ng battery nyo ay 5volts lang, at yung device nyo ay 12v, gamitin nyo lang itong device na ito, iadjust nyo lang yung output sa 13v, so ang result, yung 5v battery eh magiging 13v na sya. Or kung yung battery nyo ay 12v tapos kailangan nyo ipower up yung  gadget nyo na 5v, pwede nyo rn itong gamitin.

• 100% Brand New.

• Size: 4.1 x 2.2 x 1.1cm(L x W x H) (Approx)

• Color: Black

• Wide Input voltage: 3V-30V

• Output Voltage: 4-35V (Adjustable)

• Output current: rated current 3A MAX ( Heat-sink Needed)

• If you need its output power greater than 15W, please add with heat-sink

• Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)

• Switching Frequency: 50KHz

• Rectifier: Non-Synchronous Rectification

• Short circuit protection: current limiting, since the recovery

• Operating temperature: Industrial grade (-40 ? to +85 ?) (output power 10W or less)

• Full load temperature rise: 40

• Load regulation: ± 0.5%

• Voltage regulation: ± 0.5%

Pls note that for step-up functions, voltage will go up but current will go down, for example, battery is rated 5V 1A, and you want to set 12v as output, the resulting current will be 350mA, there will be significant decrease.
