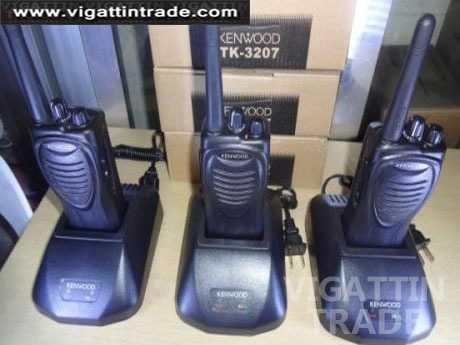

KENWOOD TK-3207
TWO WAY RADIO
WALKIE TALKIE

Feature:
.16 memory channels
.Built-in 50 CTCSS and 104 DCS
.VOX built-in
.Voice Reported
.Rechargeable Lithiym Battery Pack Included 1600mAh
.DTMF Function
.Time-out Timer
.Channel Scan
.Low Battery Alert
.High / Low power adjustable
.Adjust Squelch Level (0-9)
.Auto Power-saving
.Voice Guide
.Programmable by PC Software


Technical Specification


Frequency Range
VHF:136-174MHZ
UHF:350-370MHZ/370-390MHZ/400-440MHZ/440-480MHZ/470-512MHZ


Operating Voltage
DC 7.4V


Working Trmperate
-20 C ~+50 C


Memory channel
16


Operate Mode
Simplex or Semi-duplex


Channel spacing
6.25KHz


Frequency sensitivity
5ppm


Antenna impedance
50


Weight (with antenna & battery)
265 g


Dimension without antenna & battery
126mm x 59mm x 34mm


Receiver


RF sensitivity
0.2 V


Silent sensitivity
0.2 V


Audio frequency power
500mW


Audo distortion
5%


Audio Response
+2dB~-10dB


Spurious Rejection
55dB


Adjacent Channel Selectivity
55dB


Intermodulation Rejection
55dB


Blocking
85dB


Transmitter


Output power
5W/1W


Frequency Stability
+-2.5ppm


Max Frequency Deviation
5KHz


Modulation sensitivity
2.2KHz-3.6KHz


Modulation deviation
5%

Modulation Character
+3dB~-3dB

Adjacent Channel Power
65dB


Surious Radiation
7 W

Occupied Bandwidth
16KHz

Remanent modulation
-35dB
