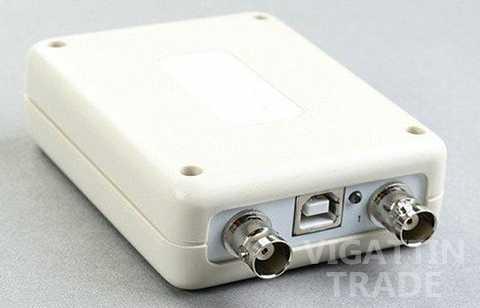

2-CHANNEL PC Computer USB Digital Storage Oscilloscope

preview
view images

Ad Information

Price :
Classification :
Condition :
Category :
Subcategory :
:
Date Posted :
Location :

Ad Description

VIG IT now! CLICK ME

  • 2 channel input and synchronized display
  • Measures range automatically
  • 4 available modes
  • Input capture (trigger) function
  • Able to set any channel as the source of the capture (trigger) signal
  • Able to set rising or falling edge to capture (trigger) signal
  • Adjustable capture (trigger) signal level
  • Powered directly by USB port – no batteries or external power supply required
  • Use with electronic teaching equipment
  • Carry out acoustic tests and research
  • Ideal for SCM development
  • Examine and repair apparatus and appliances
2 channel PC storage oscilloscope is brand new and boxed and comes with:
  • 2 BNC tie-ins
  • USB 2.0 cable
  • CD which includes instruction manual and driver installer



Technical Parameters:
  • PC connection: USB
  • Operating systems used: W2K, XP
  • Signal input: BMC connection with universal oscillograph probe
  • Max sampling: 8kHz x 1/ (4kHz x 2)
  • Voltage: 5V USB port supply
  • Current: 60mA
  • Measurable frequency: 0Hz -----3kHz
  • DIV array: horizontal 16DIV x vertical 10DIV
  • Input impedance: 1M
  • Max voltage: 0---5V
  • Error of voltage measurement: ±30mV
  • Adjustable range of time domain: 10 mS/DIV----10800 S/DIV
  • Error of time measurement: ±0.01%
  • Capacity of data record & save: 8388608 x 2
  • Max time of data record & save: 93 hours



USER INFO: / (02) 945-2568,(02) 414-3972
