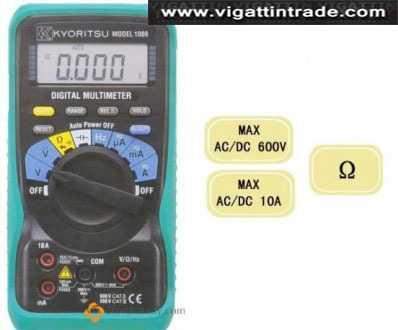

1009

Selection Guide
http://www.kew-ltd.co.jp/en/products/multimeters/multimeters_201301_8E.pdf

Product Catalogue
http://www.kew-ltd.co.jp/en/download/pdf/1009_E.pdf

Instruction Manual
http://www.kew-ltd.co.jp/en/download/pdf/manual/english/1009_IM_92-1548D_E.pdf

Display : 4000 counts.

Auto range and manual range selector provided.
(with range hold feature)

Resistance range provides audible continuity test.

Automatically turns power off in about 30 minutes to conserve battery life.

Direct current measurement up to 10A AC and DC.

With Holster.

DC V
400mV/4/40/400/600V (Input Impedance 10M )
| 0.6%rdg 4dgt (400mV/4/40/400V)
| 1.0%rdg 4dgt (600V)

AC V
400mV/4/40/400/600V (Input Impedance 10M )
| 1.6%rdg 4dgt (20~400mV)
| 1.3%rdg 4dgt (4/40V)
| 1.6%rdg 4dgt (400/600V)

DC A
400/4000 A/40/400mA/4/10A
| 2.0%rdg 4dgt (400/4000 A)
| 1.0%rdg 4dgt (40/400mA)
| 1.6%rdg 4dgt (4/10A)

AC A
400/4000 A/40/400mA/4/10A
| 2.6%rdg 4dgt (400/4000 A)
| 2.0%rdg 4dgt (40/400mA/4/10A)


400 /4/40/400k /4/40M
| 1.0%rdg 4dgt (400 /4/40/400k /4M )
| 2.0%rdg 4dgt (40M )

Continuity buzzer
400 (Buzzer sounds below 70 )

Diode Test
1.5V Release Voltage:Approx. 0.4mA Test Current

Capacitance Test
40/400nF/4/40/100 F

Frequency
5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz

DUTY
0.1~99.9% (Pulse width/Pulse period) 2.5% 5dgt

Withstand Voltage
AC 3700V / 1min.

Applicable standards
IEC 61010-1 CAT.III 300V
IEC 61010-2-031
IEC 61326

Power Source
R6P (1.5V) 2

Dimensions
155(L) 75(W) 33(D)mm

Weight
Approx. 260g

Accessories
7066A
http://www.kew-ltd.co.jp/en/products/measurement/index.html#7066A (Test leads)
8919 (Ceramic fuse [10A/600V]) 1
8923 (Fuse [0.5A/600V]) 1
R6P 2
Instruction Manual
