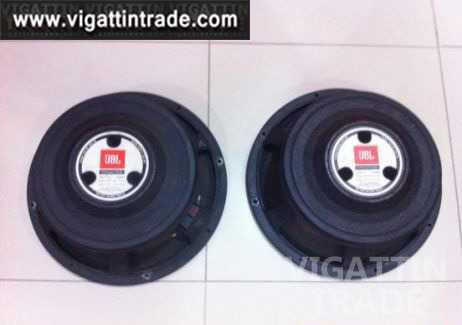

JBL 12" SPEAKER MODEL: 2206H

4 INCHES ORIGINAL VOICE COIL-ORIGINAL CONE PAPER-

$400.00 IN US TAX EXCLUDED(18K)/PC

6-PCS AVAILABLE

TXT ME --09328729353----09064809793

Brief Overview:

The 2206H 12" low frequency transducer represents

the results of JBL's latest engineering research in professional high power transducer design.

Great for portable sub woofer rigs or fixed installs.


Specifications:

Nominal Diameter: 300 mm (12 in)

Rated Impedance: 8 ohms

Power Capacity1: 600 W continuous pink noise

Sensitivity 2: 95 dB SPL, 1 W, 1 m (3.3 ft)

Frequency Range3: 45 Hz 3.5 kHz.

Power Compression:at - 10 dB power (60 W): 0.6 dBat - 3 dB power (300 W): 2.4 dBat full power (600 W): 3.9 dB

Distortions:2nd harmonic: < 1.0%3rd harmonic: < 1.0%

Highest Recommended Crossover: 1500 Hz

Recommended Enclosure Volume: 28-113 1 (1-4 ft3)

Effective Piston Diameter: 264 mm (10.4 in)

Maximum Excursion Before Damage (p-p): 40 mm (1.6 in)

Minimum Impedance:6.9 ohms +/- 10% @ 25C (H)12.2 ohms +/- 10% @ 25C (J)

Voice Coil Diameter: 100 mm (4 in)

Voice Coil Material: Edgewound aluminum ribbon

Voice Coil Winding Depth: 19 mm (0.75 in)

Magnetic Gap Depth: 8 mm (0.32 in)

Magnetic Assembly Weight: 6.8 kg (15 lb)

B1 Factor:18.1 N/A(H)24.8 N/A (J)

Effective Moving Mass: 0.065 kg

Positive voltage on BLACK terminal gives forward diaphragm motion.
