DESCRIPTION

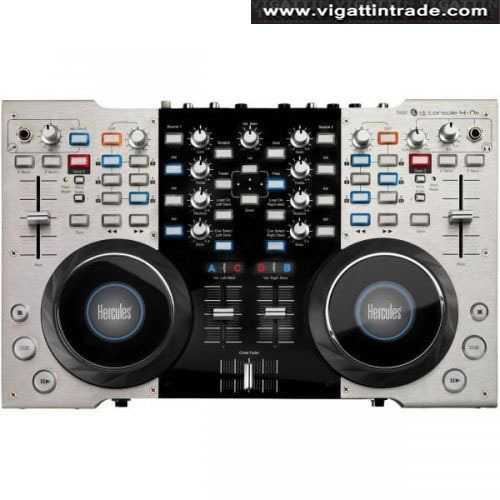

Large DJ controller with metal casing, built-in audio and large jog wheels
Key features
Large DJ station for mobile computer DJs
- 2-deck/4-deck metal DJ controller to mix 2 or 4 stereo audio tracks
- 2 stereo out (for mixing & previewing) + 2 stereo in (for analog gear)
- Mobile metal controller: a large mixer (40x25cm) with included carry bag
2 large jog wheels with touch detection
- Jog wheel size: 12cm diameter (4.7") x 1.9cm height (0.75")
- Weight sensors, to detect the hand s weight on the jog wheel top
- Great for scratching and seeking within audio tracks
2-deck & 4-deck control
2 shift buttons to turn deck A into deck C, and deck B into deck D
- 2-deck for standard DJ mixes, when mixing 2 audio tracks
- 4-deck mixing: double the controls when you mix 4 tracks
VIRTUAL DJ7 LE included: 4-deck DJ mixing software
- For Windows XP/Vista/7
- For Mac OS 10.5 & 10.6



http://www.hercules.com/us/DJ-Music/bdd/p/141/dj-console-4-mx/#top
TECHNICAL SPECIFICATIONS

Large jog wheels with touch detection
Same size as jog wheels on CD players
- 12cm (4.7") diameter: as large as a compact disc.
- 1.9cm (0.75") height: as comfortable as on a CD player.
- 2 large jog wheels you can t miss.
Touch detection via weight sensors
Weight sensors detect the user s touch by detecting the hand s weight, to activate scratch mode.
Detection of the hand s weight activating the jog wheels touch control is:
- natural: like on vinyl turntables and high-end CD players.
- secure: no disturbance from static electricity.
- intuitive: no need to calibrate.
Press down
The hand s weight moves the jog wheels down by 1mm:
- press the jog wheel down: you feel that you re scratching.
- move your hand up: you feel that you ve released the jog wheel.
Jog wheels control over the DJ software
While the track plays, you control the DJ software with 2 actions on the jog wheel:
- rotation, to control movement within the track.
- press down to control scratching.
Thus, during audio track playback:
- Rotation without jog wheel press = pitch bend (like when you turn a turntable s ring).
- Rotation with jog wheel press = scratch (like when you turn a vinyl record with your hand flat on the record).
- No rotation with jog wheel press = stop playback (like when you stop a vinyl record s rotation with your hand).
- No rotation without jog wheel press = playback continues.
Jog wheel accuracy
Rotation: 256 steps per revolution = 1.4 degrees per step.
Press down: <1mm travel.
Powerful DJ control surface
Number of controls
2-deck mode
Transport commands: 66 commands
Transport buttons + combo commands: 52 buttons
Shifted commands: 12
Pitch reset: 2
Knobs: 14
Faders: 5
Jog wheels: 4 commands
Rotation commands: 2
Touch commands: 2
Total: 89 commands
4-deck mode
Transport commands: 124 commands
Transport buttons + combo commands: 96 buttons
Shifted commands: 24
Pitch reset: 4
Knobs: 24
Faders: 9
Jog wheels: 8 commands
Rotation commands: 4
Touch commands: 4
Total: 165 commands

2-deck and 4-deck DJ mixing controller
2-deck control
DJ Console 4-Mx controls 2 decks in the same way as DJ Console Rmx.
4-deck control
DJ Console 4-Mx controls both 2 decks and 4 decks, with 2 buttons switching the decks:
- a deck switch button on the left deck converts deck A into C / deck C into A.
- a deck switch button on the right deck converts deck B into D / deck D into B.
Once a deck is switched:
- all of the commands that the deck s controls send to the DJ software are changed.
- the letter of the active deck is highlighted in the center of the mixer.

Audio for mobile and club DJs
2 stereo outputs
2 independent stereo outputs on the rear panel:
- 4 RCA connectors to connect to a stereo system, a recorder...
- 4 mono connectors in jack format, to connect to a public address amplifier or speakers.
A ground lift switch on jack outputs 1-2, to protect the sound in the event of a ground loop.
1 headphones jack stereo output, located both on the top panel and on the front panel.
The headphones play the same channels as outputs 3-4 on the rear panel.
The 2 ways of using DJ Console 4-Mx s audio outputs are:
For a mix inside DJ Console 4-Mx:
- connect the speakers/amplifier to outputs 1-2, to play the mix for your audience.
- connect headphones to one of the 2 headphone outputs (front or top), to preview tracks.
For an external mix (using an external mixer - VirtualDJ Pro (not included) or other DJ software required):
- connect DJ Console 4-Mx outputs 1-2 to inputs 1-2 on the external mixer.
- connect DJ Console 4-Mx outputs 3-4 to inputs 3-4 on the external mixer.
- mix on the external mixer, and connect headphones to the external mixer.
- use DJ Console 4-Mx to control the virtual decks.
2 stereo inputs
2 independent stereo inputs via 4 RCA connectors:
- Select the audio source type in the DJ Console 4-Mx control panel: phono/consumer line/pro line/boost.
- Boost mode supports +8dBu signal level (for use with Pioneer CDJ players, for example).
- If the audio sources are vinyl turntables at phono level, connect the turntables ground cables to the DJ Console 4-Mx s grounding screw.
1 microphone jack mono input, located on both the top panel and the front panel.
The microphone input can be set:
- as a talk-over source (default mode): the microphone is played on outputs 1-2 over the music in the background, using the music attenuation level set in the DJ Console 4-Mx control panel (0dB, -3dB, -6dB or -9dB).
- or as a standard source, replacing inputs 1-2.
DJ Console 4-Mx pre-amplifies the microphone input by up to +34dB.



http://www.hercules.com/us/DJ-Music/bdd/p/141/dj-console-4-mx/#top
MINIMUM CONFIGURATION

PC minimum requirements
Windows XP/Vista/7 (32-/64-bit)
1.5GHz CPU or higher
1GB of RAM or more
USB port with USB bus power
Stereo speakers &/or headphones
Mac minimum requirements
Mac OS 10.5/10.6
1.5GHz CPU or higher
1GB RAM or more
USB port with USB bus power
Stereo speakers &/or headphones



http://www.hercules.com/us/DJ-Music/bdd/p/141/dj-console-4-mx/#top
ILLUSTRATIONS/DIAGRAMS





http://www.hercules.com/thumb/?q=95&w=900&h=600&src=/data/inetpub/www.hercules.com/fichier/h_photo/569/photo_file_us_hercules.dj.console.4mx.11.jpg&f=jpeg&bg=FFFFFF

http://www.hercules.com/thumb/?q=95&w=900&h=600&src=/data/inetpub/www.hercules.com/fichier/h_photo/570/photo_file_us_hercules.dj.console.4mx.7.jpg&f=jpeg&bg=FFFFFF



http://www.hercules.com/thumb/?q=95&w=900&h=600&src=/data/inetpub/www.hercules.com/fichier/h_photo/571/photo_file_us_hercules.dj.console.4mx.8.jpg&f=jpeg&bg=FFFFFF





http://www.hercules.com/us/DJ-Music/bdd/p/141/dj-console-4-mx/#top
SOFTWARE





http://www.hercules.com/thumb/?q=95&w=900&h=600&src=/data/inetpub/www.hercules.com/fichier/h_photo/568/photo_file_us_hercules.dj.console.4mx.6.jpg&f=jpeg&bg=FFFFFF




PRICE = Php 29,500 LAST PRICE
Contacts:
ALVIN - 09173032407
LUIS-09278609496

Hapijoey recording studio
1423 A.H. Lacson st. Sta.Cruz, Manila Near UST and SM San Lazaro In front of Family Clinic College
As for your assurance of a legit transaction here are my credentials I am an active member of the pinoy drums community and already did numbers of transaction in this forum. Aside from that I am part owner of hapijoey studios which a lot of indie bands are currently recording such as sushi monster, mithi,publico etc.
