Long-Range Dual Radio 802.11n Wireless Outdoor Access Point

OVERVIEW:

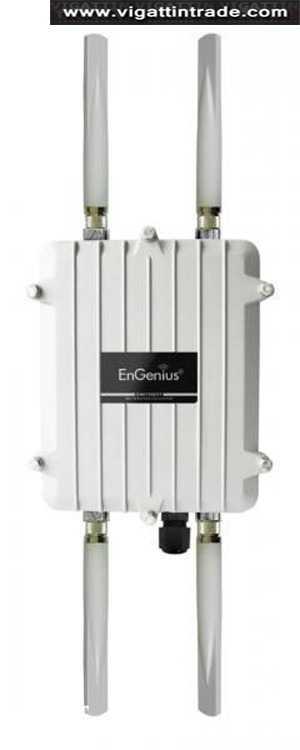

ENH700EXT is an EnGenius X-treme SMB^TM Long-Range, Dual Radio (2.4 and 5GHz) 802.11n Wireless Outdoor Access Point / Client Bridge in a rugged IP68-rated enclosure. With up to 300Mbps wireless data rate on each radio, it provides a much more versatile and expansive solution for outdoor Wi-Fi connectivity for laptop computers, tablet PCs and smartphones or for connecting other buildings to an established company network.



The ENH700EXT can be configured in a number of different modes giving VARs, system integrators, IT managers, and installers the ability to configure the device for discrete functionality based on their unique network topology or scalable needs. With two onboard radios, each can be configured into different operation modes independently, thus the ENH700EXT adds an additional layer of flexibility that single-band Access Points do not offer. This includes the ability to establish a backbone (backhaul) network using the 5GHz radio between separate buildings in a campus environment while still providing Wi-Fi connectivity to an establish Internet account or to a company’s networked resources (databases, storage, printers) for employees, guests or students using their laptops, tablets or smartphones in outdoor venues on the 2.4GHz band.



In Access Point mode, the ENH700EXT expands the overall bandwidth of an outdoor Wi-Fi solution andusers who wish to stream video or transfer large files now have the option to associate to any one of the AP’s up to eight configurable 5GHz SSIDs (Service Set Identifiers) – particularly useful in areas where there may be a preponderance of competing and overlapping 2.4GHz signals from Access Points and devices not affiliated with the company’s network.



EnGenius’ EZ Controller Access Point Management Software is included with the ENH700EXT so even units that have already been deployed on rooftops or other difficult-to-access locations and other EnGenius APs or Client Bridges in the network can be reconfigured to a different operational mode or upgraded remotely without having to manually reconnect to them or re-install them on site. EZ Controller gives a VAR, system integrator or network administrator the tools to remotely monitor network traffic by Access Point or Bridge, optimize network performance and address any unanticipated downtime from the comfort of their office and thus diminish or in most cases eliminate the need to physically maintain or reconfigure devices at their specific locations.



Like other EnGenius business-class networking products, the ENH700EXT provides state-of-the-art, enterprise-grade wireless network encryption and authentication standards including WPA, WPA2, TKIP/AES and IEEE 802.1x RADIUS Authentication. Network administrators can also configure an additional layer of security by mapping each of the ENH700EXT’s SSIDs to a company’s established VLANs. This added feature helps to ensure that only users in specific VLANs are accessing information they have been authorized to access even when they work outside the building or from another building on the corporate campus that has been bridged to a main office via one or more ENH700EXT units. These settings are available upon initial installation with the device’s browser-based Graphical User Interface and through EZ Controller.



The ENH700EXT’s internal electronics have been mounted in an IP68-rated enclosure, one of the highest waterproof and dustproof ratings available, that is designed to withstand extremely harsh environmental conditions including severe and prolonged exposure to sunlight, extreme cold, frost, snow, rainfall, hail and humidity. The housing of the Access Point also has been manufactured to repel ultraviolet (UV) radiation from the sun. These protective measures make the ENH700EXT an ideal outdoor Wi-Fi solution for virtually any locale or any venue including ski resorts, beach resorts, college and corporate campuses and businesses located in snowy, rainy or sunny and arid climates.



SPECIFICATIONS:

HARDWARE SPECIFICATIONS



Standard

• IEEE 802.11 a/b/g/n

Memory

• 64 MB

Flash

• 8 MB

Physical Interface

• 1 x RJ-45 for 10/100/1000 Gigabit Ethernet
• Reset Button in PoE Injector

Power requirements

• Active Ethernet (Power over Ethernet)
• Proprietary PoE design
• Power Adapter 48V / 0.8A



RF SPECIFICATIONS



Frequency Band

• 802.11a

5.15 ~ 5.35GHz, 5.47 ~ 5.725GHz, 5.725~5.825GHz

• 802.11b/g

2.400 to 2.484 GHz

Data rate

• Up to 300 Mbps per radio



Receive Sensitivity (Typical)

802.11n (5GHz)

-94dBm @ MCS0

-76dBm @ MCS7

-91dBm @ MCS8

-73dBm @ MCS15

802.11n (5GHz)

-95dBm @ MCS0

-77dBm @ MCS7

-91dBm @ MCS8

-75dBm @ MCS15

802.11a

-95dBm @ 6Mbps

-80dBm @ 54Mbps

802.11g

-95dBm @ 6Mbps

-80dBm @ 54Mbps

802.11b

-95dBm @ 1Mbps

-91dBm @ 11Mbps

Available transmit power

(Max. Power may be different depending on local regulations)

802.11n (5GHz)

27dBm @ MCS0~2/

MCS8~10

26dBm @ MCS3/MCS11

25dBm @ MCS4/MCS12

23dBm @ MCS5/MCS13

22dBm @ MCS6/MCS14

21dBm @ MCS7/MCS15

802.11n (2.4GHz)

27dBm @ MCS0~2/

MCS8~10

27dBm @ MCS3/MCS11

26dBm @ MCS4/MCS12

25dBm @ MCS5/MCS13

24dBm @ MCS6/MCS14

23dBm @ MCS7/MCS15

802.11a

26dBm @ 6~24Mbps

25dBm @ 36Mbps

23dBm @ 48Mbps

21dBm @ 54Mbps

802.11g

27dBm @ 6~24Mbps

26dBm @ 36Mbps

25dBm @ 48Mbps

24dBm @ 54Mbps

802.11b

7dBm @1~11Mbps



Antenna

• 4 x N-type connector



NETWORKING



PPPoE

Point-to-Point Protocol over Ethernet at Client Router mode. This function will

keep trying when failed or disconnected

PPTP

Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks



SECURITY



Wireless Security

WEP Encryption-64/128/152 bit, WPA/WPA2 Personal (WPA-PSK using TKIP or

AES), WPA/WPA2 Enterprise (WPA-EAP using TKIP), 802.1x Authenticator, Hide SSID in beacons, MAC address filtering up to 50 field, L2 isolation(AP mode), Wireless STA (Client) connected list, Hidden SSID broadcast to prevent illegal connection



IP 68 Protection

Designed to deliver best reliability in harsh outdoor environments.



MANAGEMENT



Firmware Upgrade

Upgrading firmware via web browser, setting are reserved after upgrade

Reset & Backup

Reset to factory default. User can export all setting into a file via WEB

MIB

MIB I, MIB II(RFC1213) and private MIB

SNMP

V1, V2c



ENVIRONMENT & MECHANICAL



Temperature Range

• Operating -20°C~70°C
• Storage -30°C to 80°C

Humidity (non-condensing)

• 0%~90 % typical

Water/Dust proof

• IP68

Dimensions

• Weight: 4 Ibs.
• Width: 7.75”
• Length: 9.5”
• Height: 2.0”
• Weight
• 4 Ibs

Contents of Package

ENH700EXT Dual-Radio Access Point

PoE Injector (EPE-48GR)

Power Adapter

2.4GHz 5dBi Omni directional N-type antenna x 2

5GHz 5dBi Omni directional N-type antenna x 2

CD with User’s Manual

Quick Installation Guide

Mast mount/wall mount set

Grounding cable
