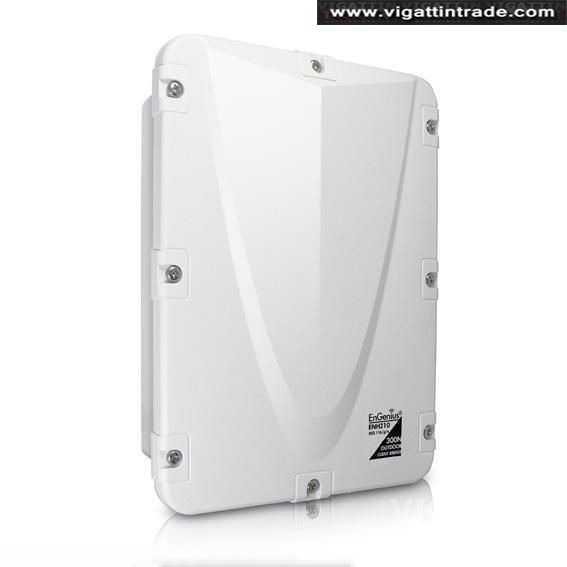

ENH210 is a long-range outdoor 802.11n Wireless-to-Ethernet Client Bridge operating in 2.4GHz band at data rates up to 300Mbps. ENH210’s high power output of up to 800mW provides a longer range, high-speed wireless connection for building-to-building deployments or IP security camera wireless applications in remote parking lots or parking structures.



HARDWARE SPECIFICATIONS



MCU

Atheros AR7242



RF

Atheros AR9283



Memory

64 MB



Flash

16 MB



Physical Interface

Gigabit Ethernet (10/100/1000) Power-over-Ethernet port x 1

Gigabit Ethernet (10/100/1000) port x 1



LED Indicators

Power Status

LAN1 Gigabit Ethernet (10/100/1000Mbps)

LAN2 Gigabit Ethernet (10/100/1000Mbps)

WLAN (Wireless is enabled)

3 x Link Quality (Client Bridge mode)



Antenna

Built-in internal 14dBi directional antennas



Enclosure

IP rating IP-67



Power Requirements

Active Ethernet (Power-over-Ethernet)

IEEE 802.3af/at compliant

Power Adapter 48V / 0.375A



RF SPECIFICATIONS



Wireless Standard

IEEE802.11 b/g/n



Frequency

2.412 ~ 2.472GH (b/g/n)



Modulation Technology

IEEE 802.11b: DBQSK, DQPSK, CCK

IEEE 802.11g: BQSK, QPSK, 16-QAM, 64-QAM

IEEE 802.11n: BQSK, QPSK, 16-QAM, 64-QAM



Operating Channels

11 channels



Transmit Power

802.11b(2.412 ~ 2.472GHz)

29 dBm @ 1Mbps

29 dBm @ 2Mbps

29 dBm @ 5.5Mbps

29 dBm @ 11Mbps



802.11g(2.412 ~ 2.472GHz)

29 dBm @ 6Mbps

29 dBm @ 9Mbps

29 dBm @ 12Mbps

29 dBm @ 18Mbps

27 dBm @ 24Mbps

27 dBm @ 36Mbps

26 dBm @ 48Mbps

25 dBm @ 54Mbps



802.11n(2.412 ~ 2.472GHz)

29 dBm @ MCS0/MCS8

29 dBm @ MCS1/MCS9

29 dBm @ MCS2/MCS10

29 dBm @ MCS3/MCS11

29 dBm @ MCS4/MCS12

25 dBm @ MCS5/MCS13

24 dBm @ MCS6/MCS14

23 dBm @ MCS7/MCS15



Receiver Sensitivity

802.11b(2.412 ~ 2.472GHz)

-97 dBm @ 1Mbps

-95 dBm @ 2Mbps

-92 dBm @ 5.5Mbps

-89 dBm @ 11Mbps



802.11g(2.412 ~ 2.472GHz)

-96 dBm @ 6Mbps

-93 dBm @ 9Mbps

-89 dBm @ 12Mbps

-85 dBm @ 18Mbps

-81 dBm @ 24Mbps

-79 dBm @ 36Mbps

-76 dBm @ 48Mbps

-75 dBm @ 54Mbps



802.11n(2.412~2.472 GHz)

-95 dBm @ MCS0/MCS8

-92 dBm @ MCS1/MCS9

-87 dBm @ MCS2/MCS10

-85 dBm @ MCS3/MCS11

-80 dBm @ MCS4/MCS12

-79 dBm @ MCS5/MCS13

-74 dBm @ MCS6/MCS14

-73 dBm @ MCS7/MCS15



SOFTWARE SPECIFICATIONS



Topology

Infrastructure, ad hoc (WDS bridge)



Protocols

IEEE802.11 b/g/n (2.4GHz) 802.3, 802.3u, 802.3ab, 802.1D



Operation Modes

Client Bridge / Client Router / WDS / Access Point modes

LAN DHCP server/client



VPN

VPN Pass-through



Networking

PPPoE,

PPTP, DHCP client, spanning tree,

Channel bandwidth



Security

WEP Encryption-64/128/152 bit

WPA/WPA2 Personal (WPA-PSK using TKIP or AES)

WPA/WPA2 Enterprise (WPA-EAP using TKIP)

802.1x Authenticator

Hide SSIDs in beacons

MAC Address Filtering (when used as an Access Point)



MANAGEMENT



Interface

Web-based configuration



Firmware Upgrade

via web browser



Administrator Password

Changeable



Reboot

Reboot to factory default



System Monitoring

Status in hand, statistics and event log

Configuration backup, configuration restore

Ping & Trace Route



Remote Management

SNMP:v1, v2c; MIB I, MIB II(RFC1213),

Private MIB



Time setting

Manual; Auto: NTP



Certifications

FCC 15B, FCC 15C, IC, CSA



ENVIRONMENT & PHYSICAL



Temperature Range

Operation: -4°F ~ 158°F (-20°C ~ 70°C)

Storage: -22°F ~176°F (-30°C ~ 80°C)



Humidity

(non-condensing) 0%?90 % typical



Dimensions

12.2” (L) x 9.0” (W) x 4.21” (H)



Weight

3 lbs



Contents of Package

ENH210 x 1

PoE Injector (EPE-48GR)

Power Adaptor

CD with User’s Manual

QIG

Mounting Set

Special screw set
