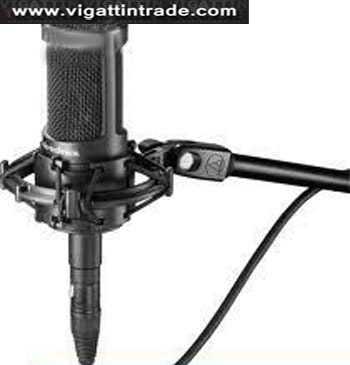

PRODUCT NAME: Audio Technica AT2035 with Shockmount PRICE:PHP 8640 PHP

PRODUCT INFO:

Designed for critical home/project/professional studio applications and live performance, this side-address cardioid studio condenser delivers exceptional detail and low noise. Equipped with a switchable 80 Hz high-pass filter and 10 dB pad, the AT2035 handles high sound pressure levels with ease. Along with its rugged construction and high-performance specifications, the AT2035 provides an exceptional level of consistency from model to model. It comes equipped with a protective pouch and a custom shock mount.



Large diaphragm for smooth, natural sound and low noise






High SPL handling and wide dynamic range provide unmatched versatility






Custom shock mount provides superior isolation






Switchable 80 Hz high-pass filter and 10 dB pad






Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source






Includes custom shock mount & protective pouch






SPECIFICATIONS


ELEMENT
Fixed-charge back plate, permanently polarized condenser


POLAR PATTERN
Cardioid


FREQUENCY RESPONSE
20-20,000 Hz


LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave


OPEN CIRCUIT SENSITIVITY
-33 dB (22.4 mV) re 1V at 1 Pa


IMPEDANCE
120 ohms


MAXIMUM INPUT SOUND LEVEL
148 dB SPL, 1 kHz at 1% T.H.D.;
158 dB SPL, with 10 dB pad (nominal)


NOISE
12 dB SPL


DYNAMIC RANGE (TYPICAL)
136 dB, 1 kHz at Max SPL


SIGNAL-TO-NOISE RATIO
82 dB, 1 kHz at 1 Pa


PHANTOM POWER REQUIREMENTS
11-52V DC, 3.8 mA typical


SWITCHES
Flat, roll-off;
10 dB pad (nominal)


WEIGHT
403 g (14.2 oz)


DIMENSIONS
170.0 mm (6.69") long,
52.0 mm (2.05") maximum body diameter


OUTPUT CONNECTOR
Integral 3-pin XLRM-type


ACCESSORIES FURNISHED
AT8458 shock mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch


AUDIO-TECHNICA CASE STYLE
R5






SPECIFICATION GRAPHS


Click on the chart to view the larger image




http://www.audio-technica.com/cms/resource_library/product_images/58b3fac5c99e454c/index.html

POLAR PATTERN




http://www.audio-technica.com/cms/resource_library/product_images/5435e69e7ba31a12/index.html

FREQUENCY RESPONSE
